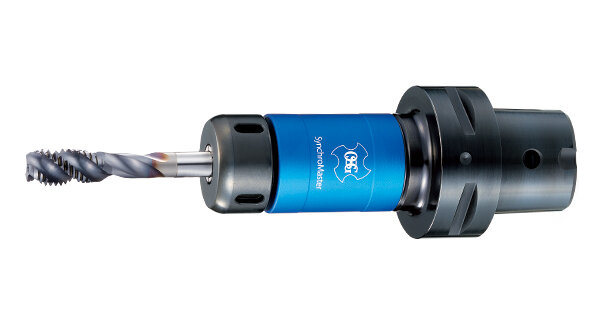

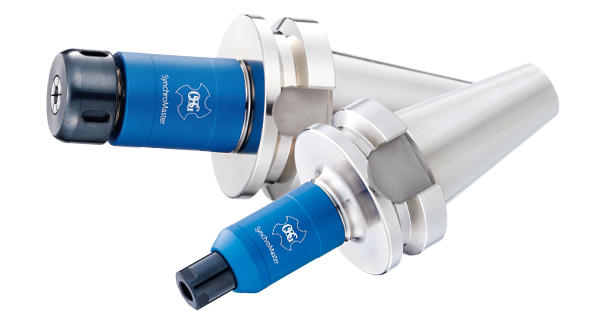

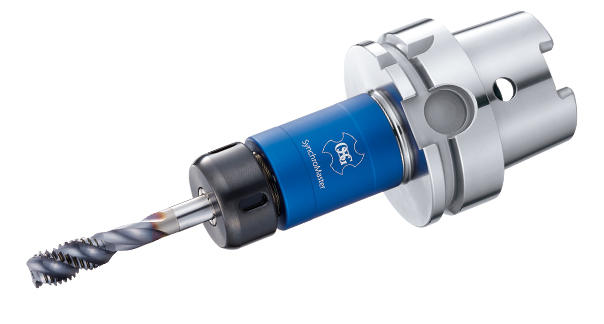

SynchroMaster
Tap Holder
To help manufacturers who use machining centers with synchronous spindles overcome common tapping obstacles, OSG Corporation has recently introduced a new generation synchronized tap holder – the SynchroMaster – engineered to turbocharge performance by dampening excessive forces in rigid tapping environment.
Features
- New generation synchronized tap holder designed to maximize the performance of your A-Tap tools.
- Micro compensator reduces axial forces in the machining process.
- Compatible with both internal and external coolant (excluding models for CNC sliding head lathes).
- revents tap slippage with the square hole design (except for size SMH8).
Recommended Tooling Combination

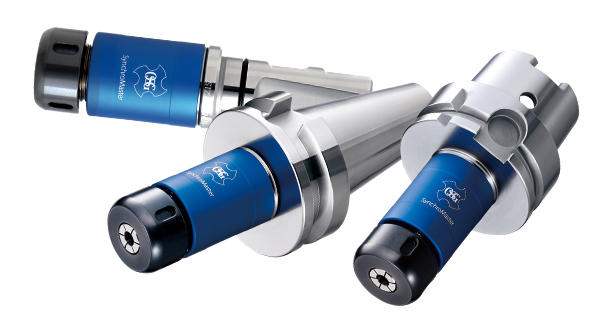

Lineup
Tap Holder
- BT Shank Holder M1~M20, PT1/16~PT3/8
- WBT-AHO Shank Holder M1~M12, PT1/16, PT1/8
- HSK Shank Holder M1~M20, PT1/16~PT3/8
- ST Shank Holder M1~M12, PT1/16, PT1/8
- Polygon Taper Shank Holder M3~M20, PT1/16~PT3/8
- Quick-change type for CNC sliding head lathes, M1~M2.6
- Collet type for CNC sliding head lathes, M1~M4.5

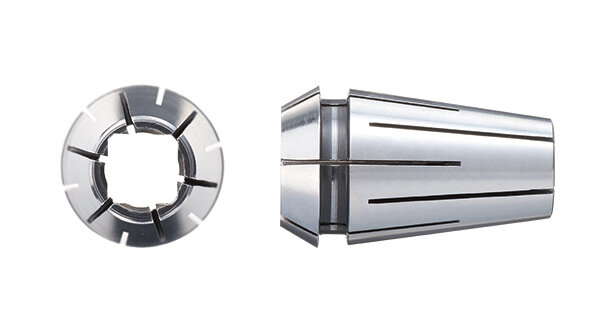

Collet
- ER8GH（for external coolant supply) 3 items
- ER8GHC（for collet-through) 2 items
- ER16GH (for center-through and external coolant supply) 8 items
- ER16GHC (for collet-through) 8 items
- ER32GH (for center-through and external coolant supply) 11 items
- ER32GHC (for collet-through) 11 items
