Indexable Flat Drill

LogoLogo
  • Indexable Flat Drill1
  • Indexable Flat Drill2
  • Indexable Flat Drill3
  • Indexable Flat Drill4
  • Indexable Flat Drill5
Indexable Flat Drill1 Indexable Flat Drill2 Indexable Flat Drill3 Indexable Flat Drill4 Indexable Flat Drill5

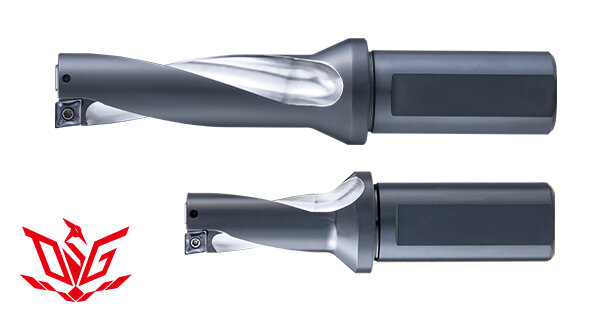

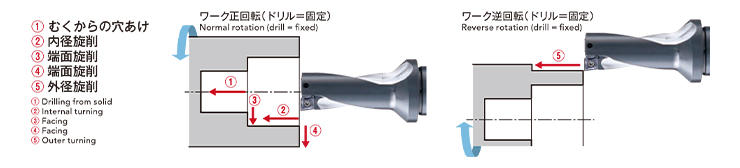

The PDZ indexable flat drill is engineered for stable flat bottom hole machining. In addition to flat surface processing, the PDZ can also accommodate a wide range of hole shapes, such as inclined surface, curved surface, counterboring, half-hole drilling, and more. Its excellent chip breaking ability enables trouble-free stable machining up to a hole depth of 2xD. The PDZ also supports internal turning, face turning and outer turning applications to enable tool consolidation on lathes.

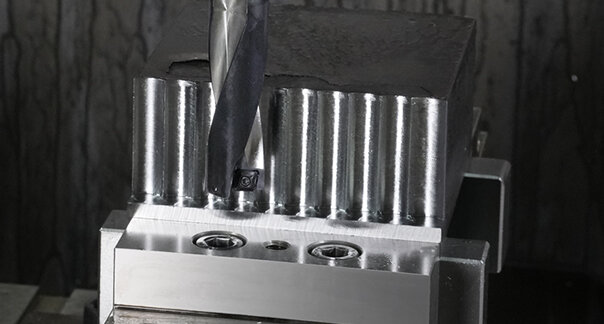

Compatible with a wide range of applications including drilling, counterboring, inclined surface drilling, and more.

Compatible with a wide range of applications including drilling, counterboring, inclined surface drilling, and more.

Features

Indexable Flat Drill Features

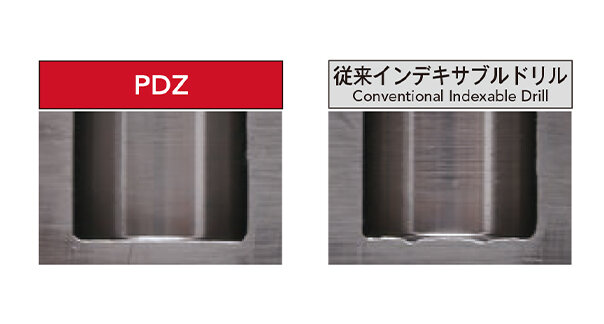

1 Flat bottom cutting edge configuration
2 High precision finishing on flute improves rigidity, chip ejection and reduces cutting force

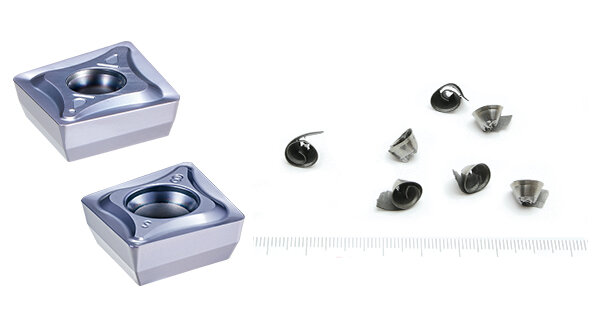

3 Superior chip breaking capability during drilling, counterboring, and turning
4 Economical 4-corner insert design maximizes cost efficiency, with the same insert applicable to both center and peripheral cutting edge →The peripheral insert is recommended for maximum durability!
  • Enables tool consolidation on lathes

Applications

Mild Steel・Carbon Steel・Low Carbon Steel・Alloy Steel・Die Steel・Stainless Steel・Cast Iron・Ductile Cast Iron・Aluminum Alloy・Superalloy・Titanium Alloy・Pre-hardened Steel(40~43HRC)・Hardened Steel(50~55HRC)

Lineup

PDZ

  • φ16~φ43

Data

Higher cost performance compared to exchangeable head drills

The number of holes machined per insert corner by the PDZ versus per exchangeable head by a competitor.
Higher cost performance compared to exchangeable head drills1
Higher cost performance compared to exchangeable head drills2

Media

Catalog

Movie

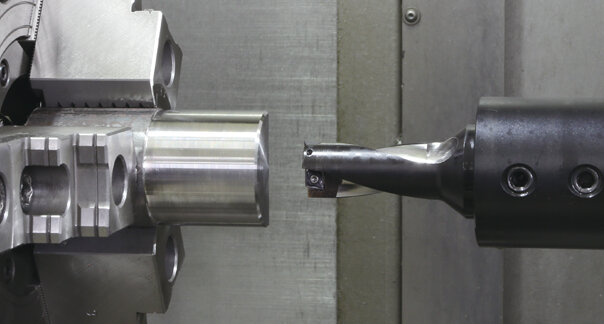

Tool consolidation by turning and inclined surface machining
