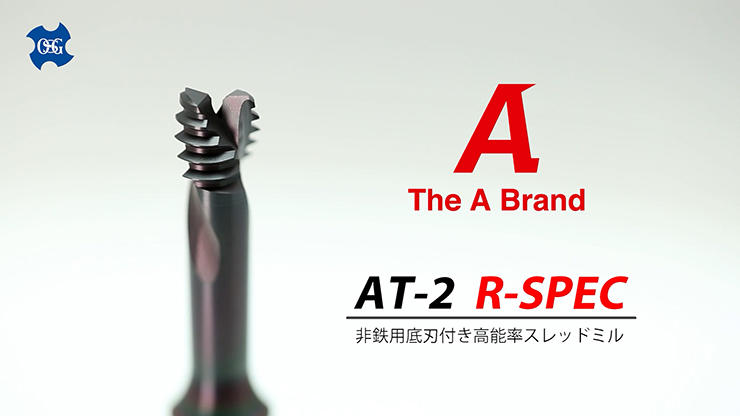

AT-2 R-SPEC

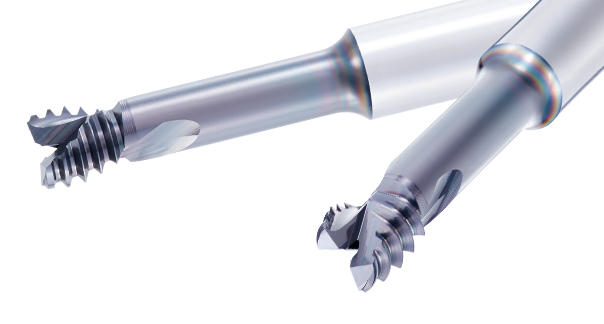

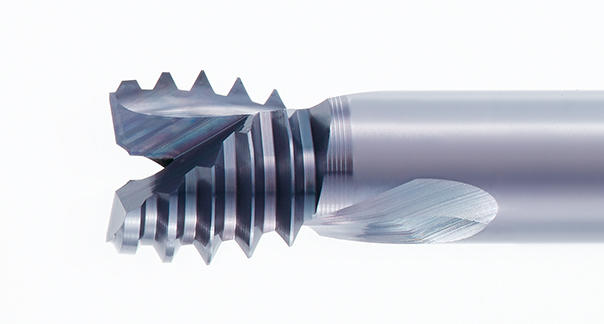

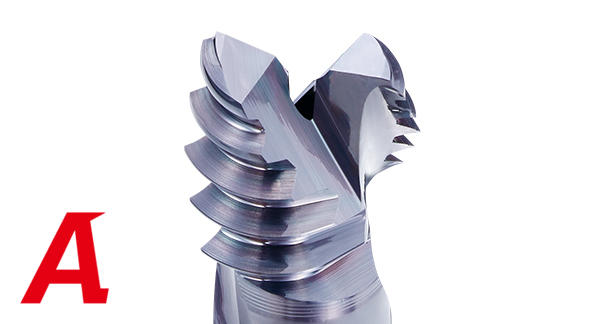

High-efficiency thread mill with end-cutting edge for non-ferrous metals

LogoLogo
  • High-efficiency thread mill with end-cutting edge for non-ferrous metals1
  • High-efficiency thread mill with end-cutting edge for non-ferrous metals2
  • High-efficiency thread mill with end-cutting edge for non-ferrous metals3
  • High-efficiency thread mill with end-cutting edge for non-ferrous metals4
High-efficiency thread mill with end-cutting edge for non-ferrous metals1 High-efficiency thread mill with end-cutting edge for non-ferrous metals2 High-efficiency thread mill with end-cutting edge for non-ferrous metals3 High-efficiency thread mill with end-cutting edge for non-ferrous metals4
The high-efficiency thread mill AT-2 R-SPEC (ThreadRacer) is engineered to dramatically reduce machining time in non-ferrous metal applications such as aluminum alloy by its continuous helical cutting ability, which combines drilling and threading into a single process. The AT-2 R-SPEC is also effective as a countermeasure against cutting position misalignment in cast holes.

Features

High-efficiency thread mill with end-cutting edge for non-ferrous metals Features
  • Helical drilling + threading can be done simultaneously.

Helical drilling + threading can be done simultaneously.

Threading time can be dramatically reduced

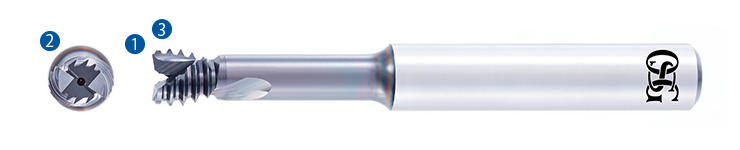

  • DLC-IGUSS coating
1 Left-hand cut configuration enables climb milling to prolong tool life

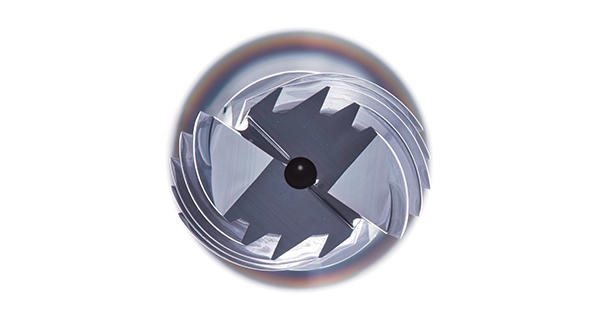

2 Superior chip evacuation *Tool DC = φ4.6 or more
3 Special cutting edge shape suppresses bending of the tool
  • Use RPRG to reduce the workload
    RPRG is the reference value of tool radius offset. Conventionally, the tool radius value is entered during setup as a parameter of the NC system, which is corrected by checking the thread with a gauge. Now, the process of correction can be simplified by simply inputting the RPRG value as indicated on the tool shank.

Support

Three Support Tools for Your Thread Milling Needs
(1) Reduce Setup Time
(2) Reduce Machining Time
(3) Achieve Stable Tool Life



Lineup

2D Type / 2.5D Type

  • M3~M12

Applications

    Copper・Brass・Brass Casting・Aluminum Rolled・Aluminum Alloy・Magnesium Alloy Casting・Zinc Alloy Casting

Data

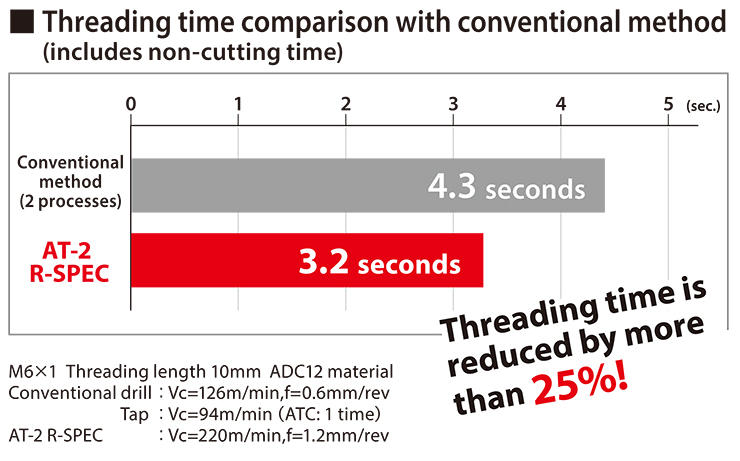

Threading time comparison with conventional method (includes non-cutting time)

Threading time comparison with conventional method (includes non-cutting time)

Media

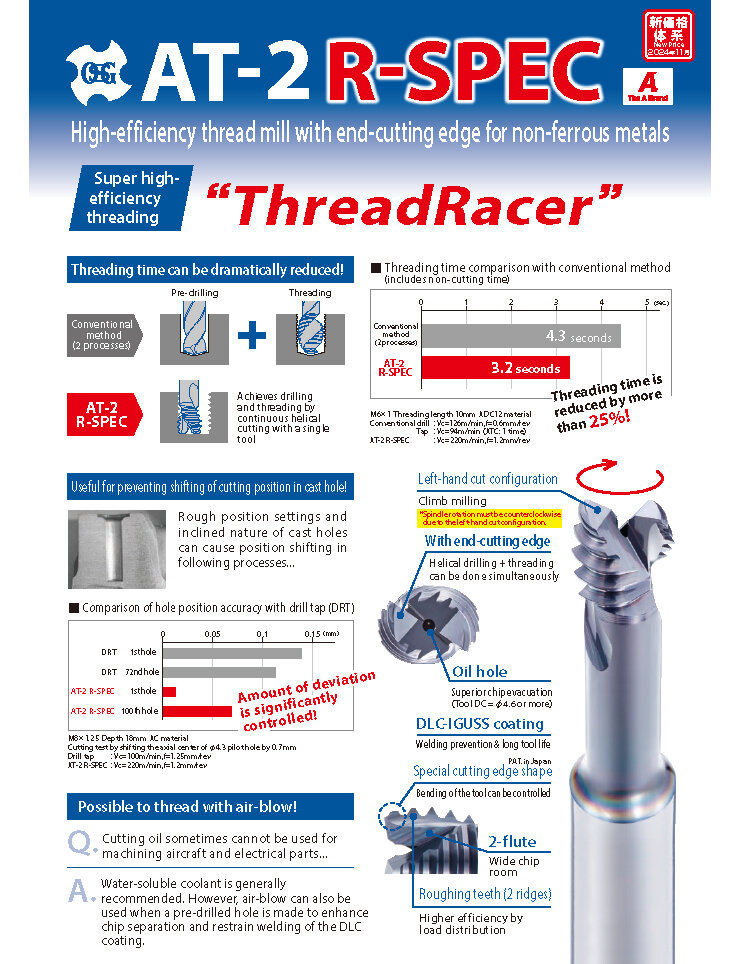

Catalog
