PSTW

6-corner Shoulder Cutter

LogoLogo
  • 6-corner Shoulder Cutter1
  • 6-corner Shoulder Cutter2
  • 6-corner Shoulder Cutter3
  • 6-corner Shoulder Cutter4
  • 6-corner Shoulder Cutter5
6-corner Shoulder Cutter1 6-corner Shoulder Cutter2 6-corner Shoulder Cutter3 6-corner Shoulder Cutter4 6-corner Shoulder Cutter5

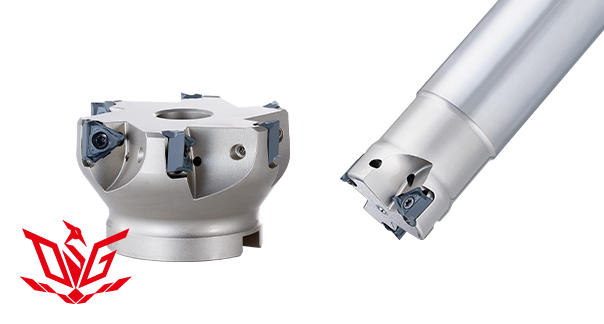

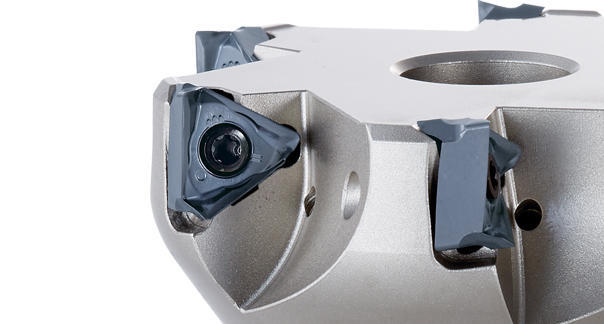

High efficiency 6-corner shoulder milling cutter for heavy-duty cutting. Thick insert and positive rake angle with increased rigidity are resistant to chattering to enable effective processing of long overhang length L / D = 5 x D. 09 size insert and straight shank type have been added to enable use in a wider range of applications.

Features

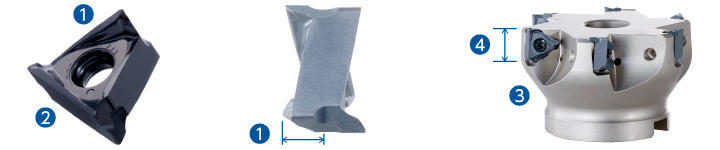

6-corner Shoulder Cutter Features

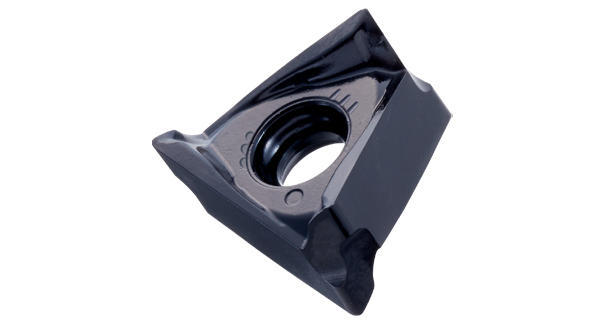

1 High rigidity and positive rake angle geometry

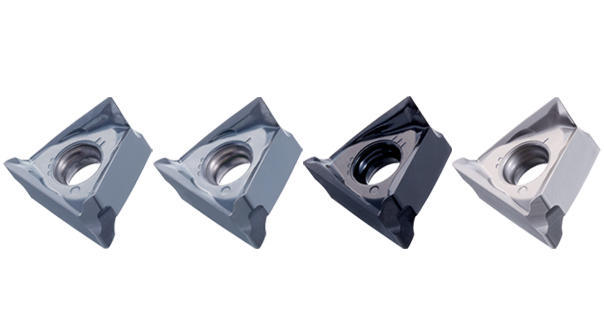

2 Economical 3-corner per side (6 corners in total) specification
3 Body design engineered for high efficiency machining
4 Maximum depth of cut: Size 09 is 9mm, size 12 is 12mm

Applications

Mild Steel・Carbon Steel・Low Carbon Steel・Alloy Steel・Die Steel・Stainless Steel・Cast Iron・Ductile Cast Iron・Aluminum Alloy・Superalloy(Wet)・Titanium Alloy(Wet)・Pre-hardened Steel・Steel for Die Casting・Hardened Steel

Lineup

Straight Shank Type (PSTW SS) φ25~φ40

Bore Type (PSTW BORE) φ40~φ125

Data

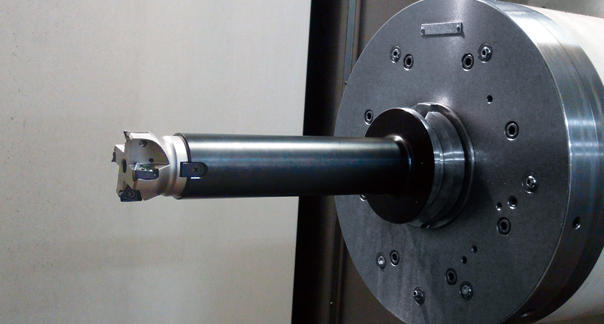

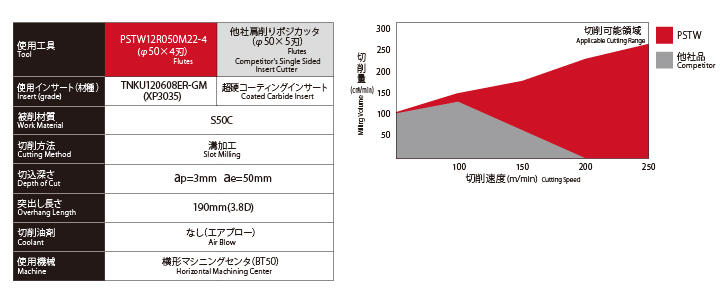

High efficiency even in long overhang length applications

High efficiency even in long overhang length applications
