AE-CPR4-H

4-flute long neck radius type high-efficiency finishing carbide end mill for high-hardness steels

LogoLogo
  • 4-flute long neck radius type high-efficiency finishing carbide end mill for high-hardness steels1
  • 4-flute long neck radius type high-efficiency finishing carbide end mill for high-hardness steels2
  • 4-flute long neck radius type high-efficiency finishing carbide end mill for high-hardness steels3
  • 4-flute long neck radius type high-efficiency finishing carbide end mill for high-hardness steels4
4-flute long neck radius type high-efficiency finishing carbide end mill for high-hardness steels1 4-flute long neck radius type high-efficiency finishing carbide end mill for high-hardness steels2 4-flute long neck radius type high-efficiency finishing carbide end mill for high-hardness steels3 4-flute long neck radius type high-efficiency finishing carbide end mill for high-hardness steels4

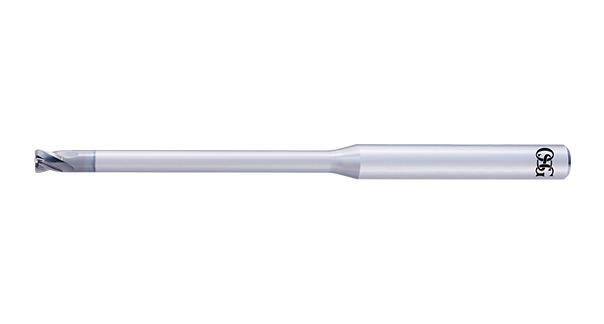

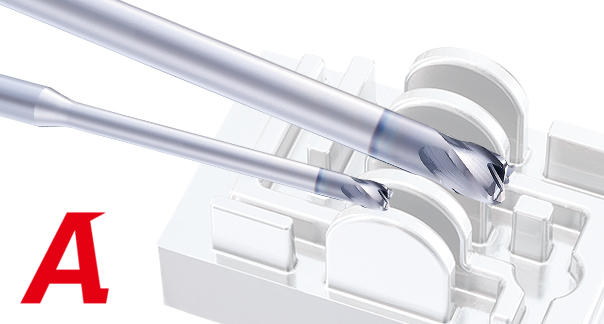

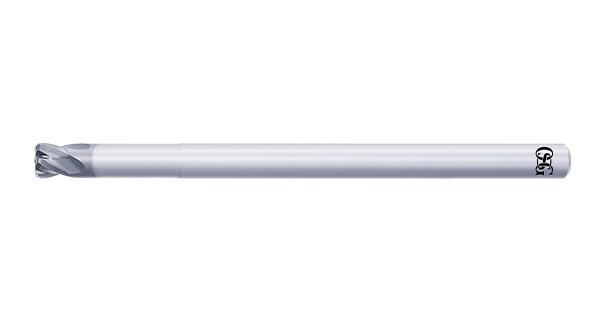

The AE-CPR4-H is a long neck corner radius carbide end mill engineered to achieve high-efficiency and high precision milling in high-hardness steels. All sizes are available in the 4-flute configuration for maximum productivity. OSG’s DUROREY coating for high-hardness steel is employed with high chipping resistance even for work materials exceeding 60 HRC, enabling long tool life and high-speed machining.

2-flute high-precision finishing carbide ball end mill for high hardness steel AE-BD-H

2-flute high-precision finishing carbide ball end mill for high hardness steel (AE-BD-H).

Click here for details.

Features

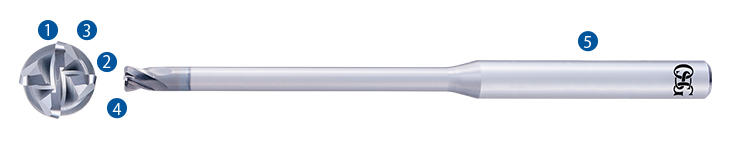

4-flute long neck radius type high-efficiency finishing carbide end mill for high-hardness steels Features
  • Newly developed DUROREY coating enables superior heat resistance and high toughness optimized for high-hardness steel milling!

1 Achieves high-efficiency milling with 4-flute specification

2 The new gash specification with a spiral shape improves chip evacuation and prevents chips from getting caught

3 Unequal spacing teeth suppresses chattering

4 Superior ball corner R precision ±0.005

5 Superior shank accuracy. Supports h4 tolerance (0/-0.004)

Applications

Carbon Steel・Alloy Steel・Tool Steel・Prehardened Steel・Hardened Steel・Stainless Steel

Lineup

Long neck radius type (AE-CPR4-H)

  • φ0.2×R0.02～φ4×R1

Others

Data

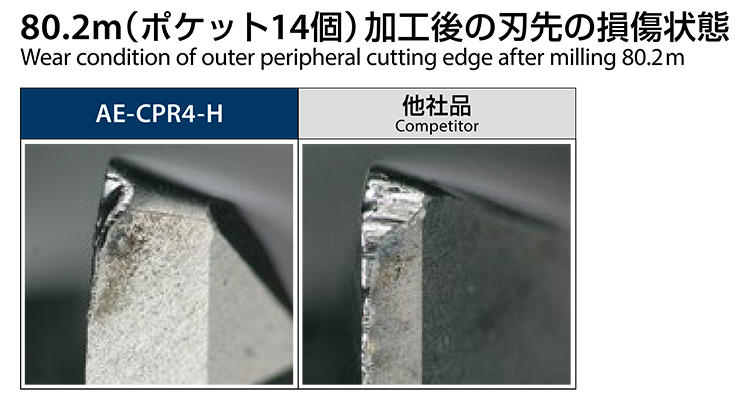

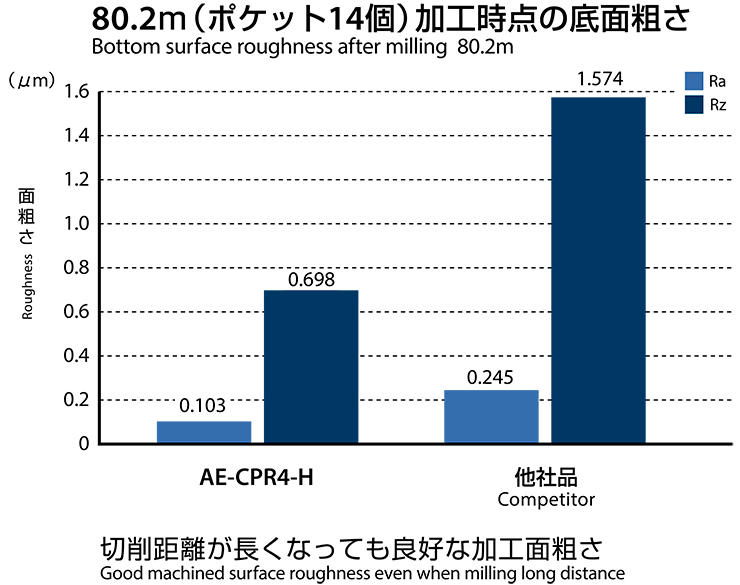

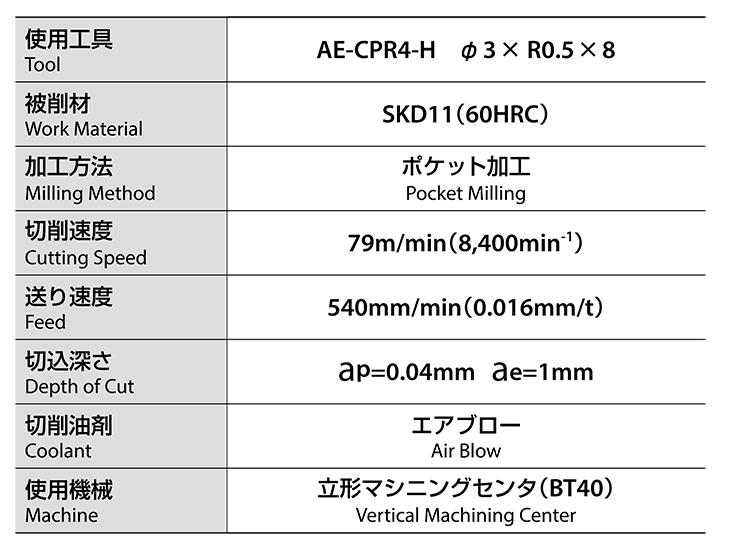

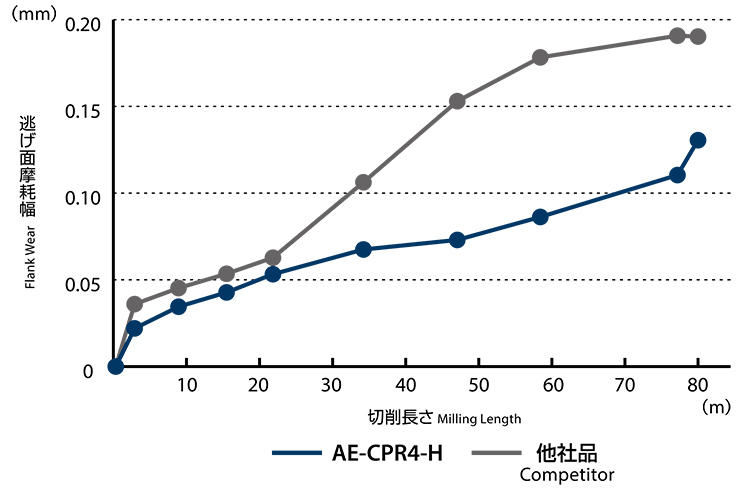

Achieves excellent durability and machined surface accuracy in profiling of high-hardness steel

Achieves excellent durability and machined surface accuracy in profiling of high-hardness steel
Achieves excellent durability and machined surface accuracy in profiling of high-hardness steel
Achieves excellent durability and machined surface accuracy in profiling of high-hardness steel
Achieves excellent durability and machined surface accuracy in profiling of high-hardness steel

Other Cutting Data

Media

Catalog

4-flute long neck radius type high-efficiency finishing carbide end mill for high-hardness steels Catalog

Movie

Play 4-flute long neck radius type high-efficiency finishing carbide end mill for high-hardness steels Movie

Watch it in action

Play 4-flute long neck radius type high-efficiency finishing carbide end mill for high-hardness steels Watch it in action
