AE-VMSX
Anti-Vibration Short Carbide End Mill with Reinforced Cutting Edge
The AE-VM anti-vibration carbide end mill series offers extensive material compatibility, ranging from carbon, alloy, and stainless steels to titanium and Ni-based alloys. For improved chipping resistance, the AE-VMSX incorporates a reinforced cutting edge with microrelief and edge honing. Furthermore, the integration of the “DUROREY” coating specifically for high-hardness steels (up to 50 HRC) provides superior chipping resistance, contributing to extended tool life and high-speed machining.

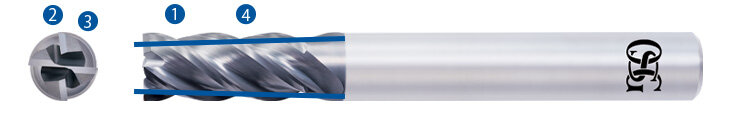

Features
DUROREY coating with high heat resistance and high toughness optimized for machining high-hardness steel

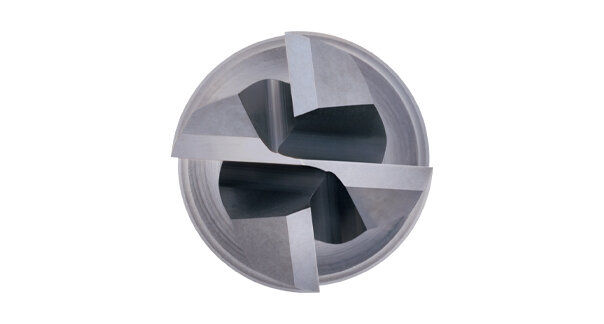

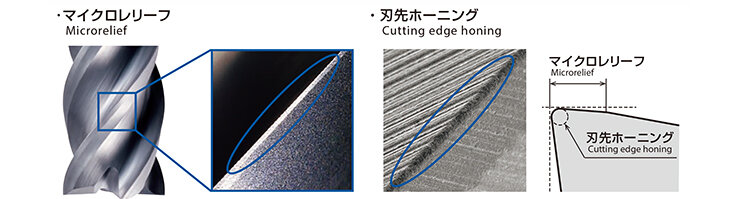

Microrelief and cutting edge honing increase the strength of the cutting edge and improve chipping resistance

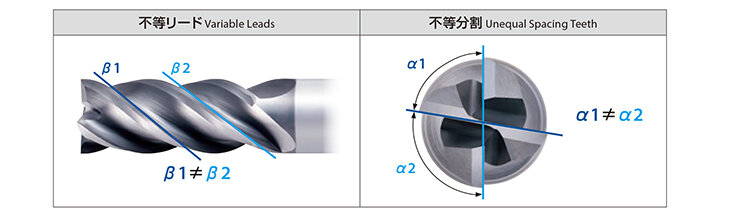

Unequal spacing of teeth and variable-lead geometry suppresses the occurrence of chatter vibrations

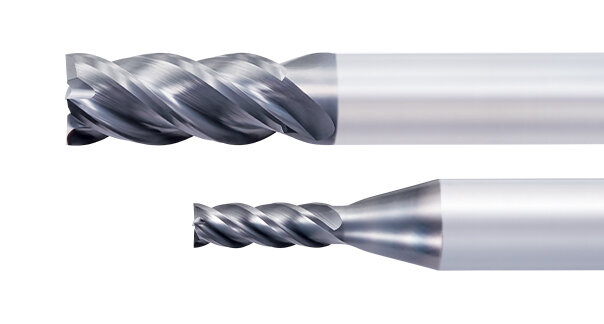

The web taper geometry, where the thickness of core changes from the cutting edge to the shank, greatly improves tool rigidity
Applications
Mild Steel・Carbon Steel・Alloy Steel・Tool Steel・Prehardened Steel・Hardened Steel・Stainless Steel・Cast Iron・Copper Alloy・Aluminum Alloy・Titanium Alloy・Heat Resistant Alloy
Lineup
Short
- Square Type φ3~φ12
Others
-
The AE-VMS short type from the AE-VM anti-vibration carbide end mill series is available in square, right-angle (-RA), and an environmentally conscious low-carbon type (AE-VMS Gtag).
Data

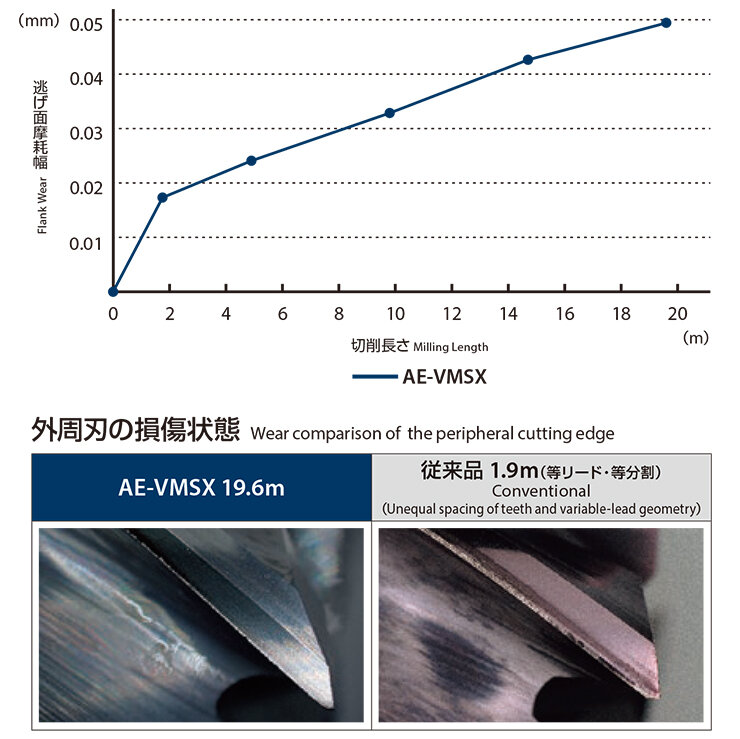

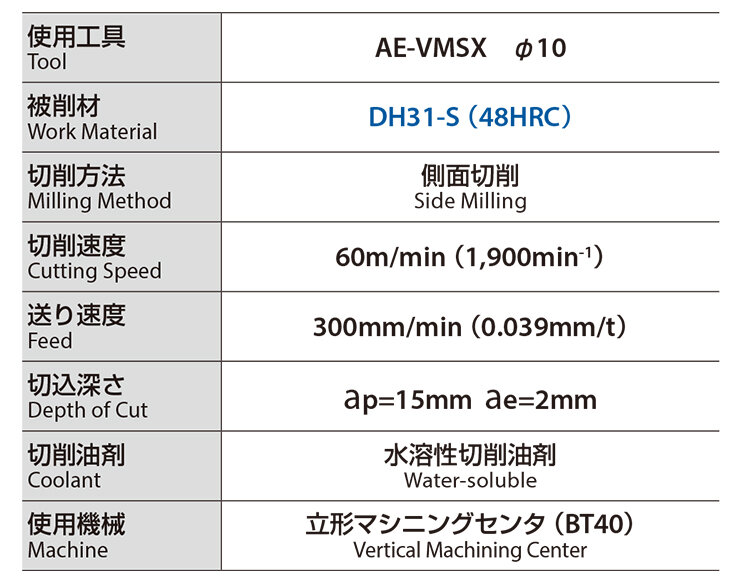

Stable machining even in hot die steel DH31-S

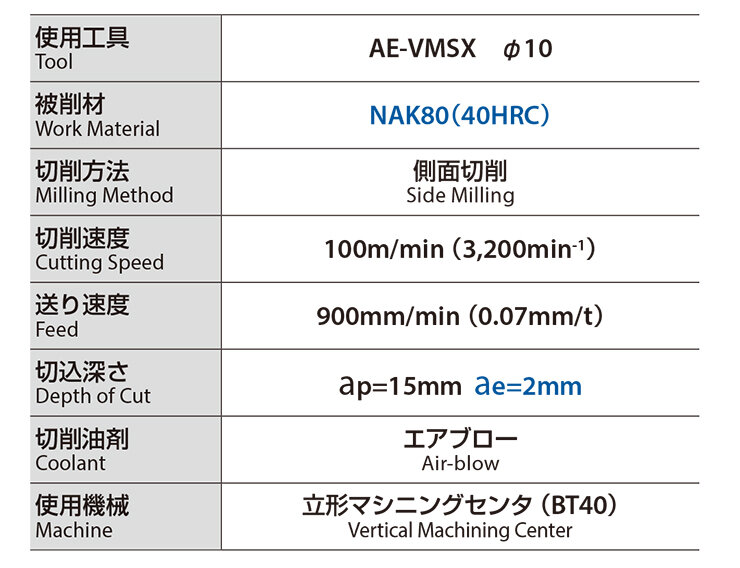

Environmental Considerations
Promotion of sustainable machining environment

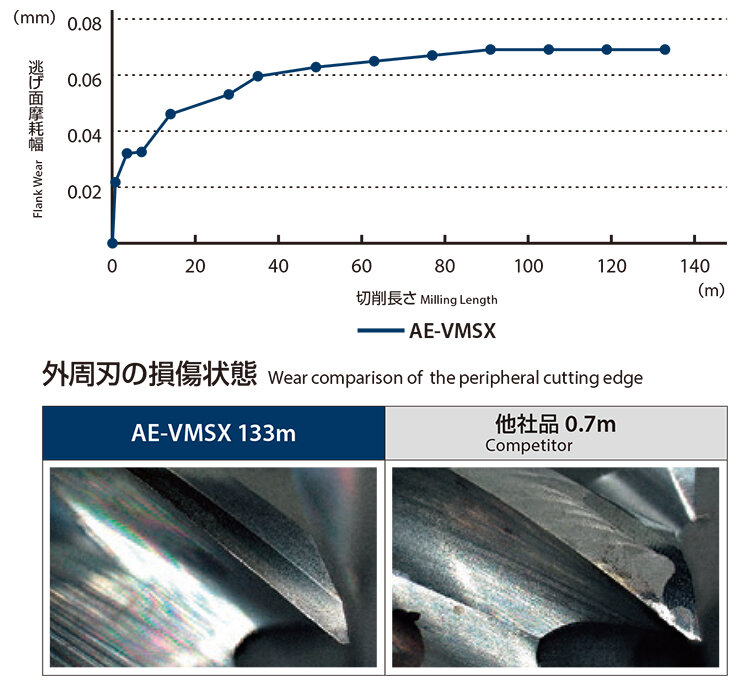

Strengthening the cutting edge with microrelief and cutting edge honing achieve stable wear progression without chipping even during deep cuts. Longer tool life contributes to reducing waste and conserve resources.
Media

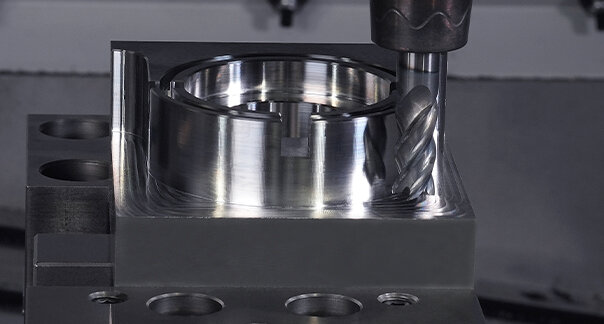

Watch it in action
