PMD

Multi-function Cutter

LogoLogo
  • Multi-function Cutter1
  • Multi-function Cutter2
  • Multi-function Cutter3
  • Multi-function Cutter4
  • Multi-function Cutter5
Multi-function Cutter1 Multi-function Cutter2 Multi-function Cutter3 Multi-function Cutter4 Multi-function Cutter5

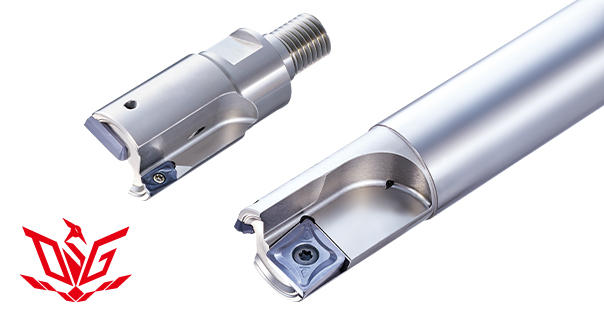

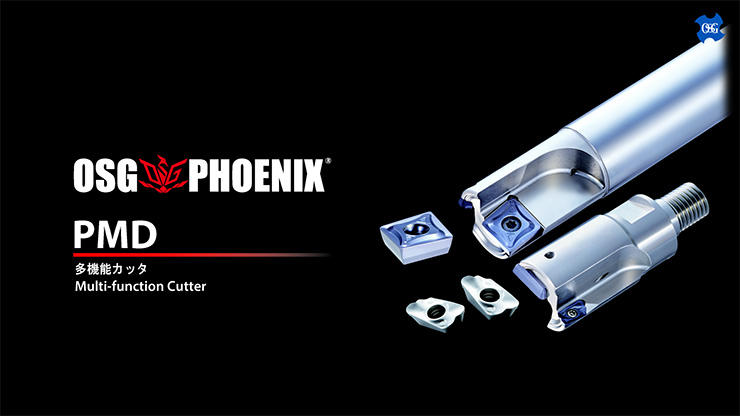

The PMD is a versatile multi-function cutter that enables continuous cutting from plunging to horizontal milling. This indexable series supports a wide range of applications with a single tool and is suitable for processes such as contouring, ramping, helical drilling, the drilling of flat bottom holes, and more. Additionally, stable and trouble-free machining is made possible by the PMD’s excellent chip breaking capability.

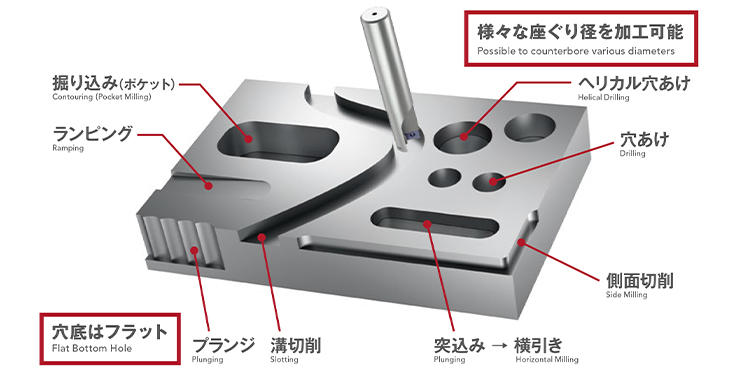

Supports a wide range of applications with a single tool

Supports a wide range of applications with a single tool

Features

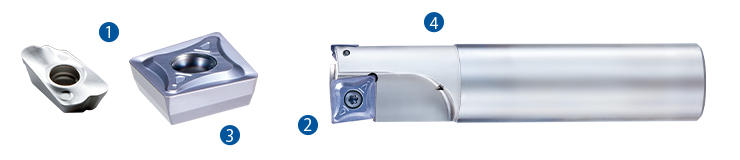

Multi-function Cutter Features

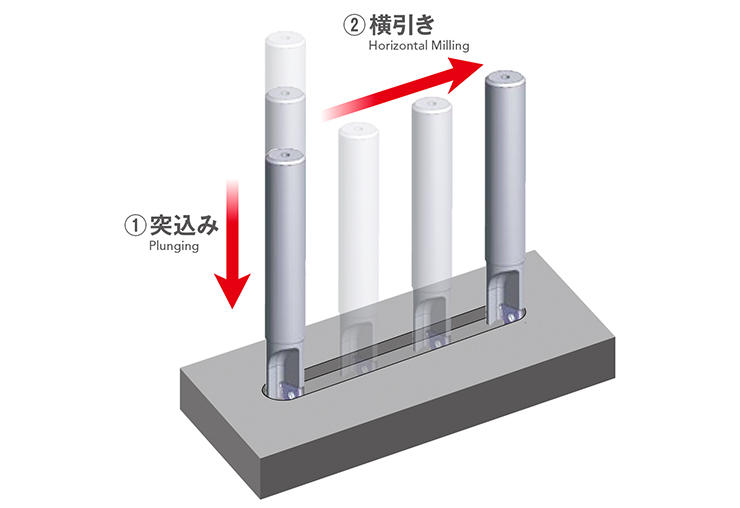

1 Two types of inserts are used to enable continuous cutting - from plunging to horizontal milling
2 Enables the drilling of flat bottom holes

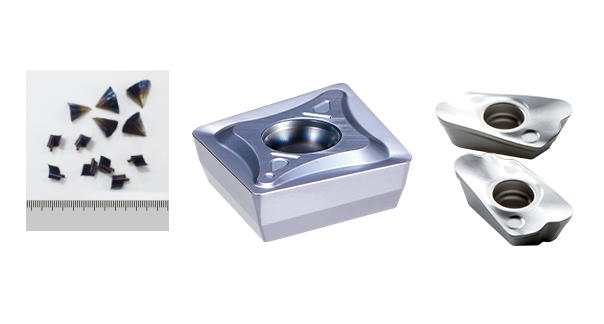

3 Superior chip breaking capability during drilling and plunging
4 Excellent chip evacuation by internal coolant

Applications

Mild Steel・Carbon Steel・Low Carbon Steel・Alloy Steel・Die Steel・Stainless Steel・Cast Iron・Ductile Cast Iron・Aluminum Alloy・Superalloy (Wet)・Titanium Alloy(Wet)・Pre-hardened Steel(40~43HRC)・Steel for Die Casting(43~48HRC)・Hardened Steel(50~55HRC)

Lineup

Straight Shank Type

  • φ20~φ32

Screw Fit Type

  • φ20~φ32

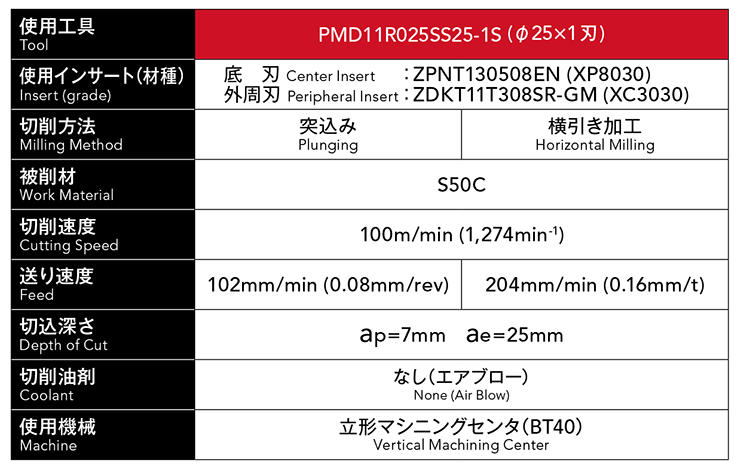

Data

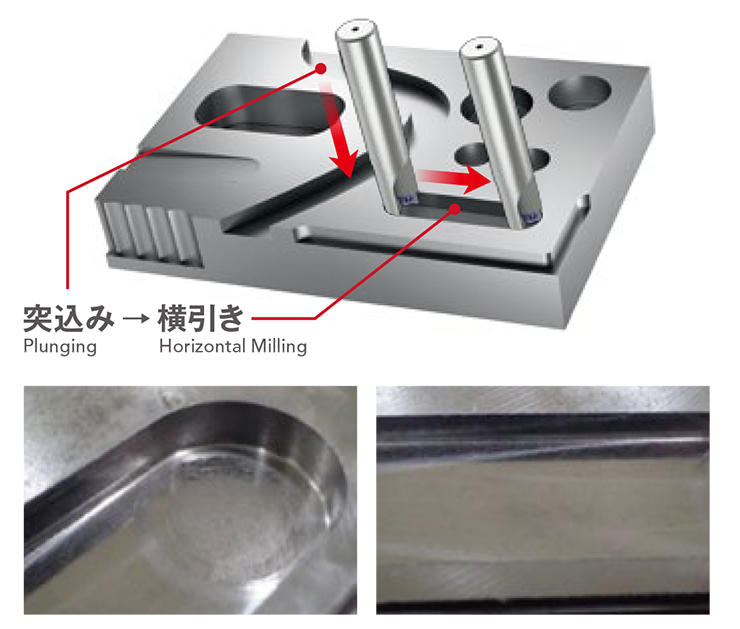

Achieves good machined surface without chattering from plunging to horizontal milling

Excellent milling surface finish without chattering.
Excellent milling surface finish without chattering1
Excellent milling surface finish without chattering2
