Dies

Dies

Tailored rolling die solutions with the same quality standard as our world-renowned taps.

To begin, setup a consultation appointment with our technical support team so that we can better understand your needs.

OSG can manufacture dies based on any desired specifications and can provide tailored evaluation and solutions. Contact your nearest OSG sales representative for details.

Play会社案内

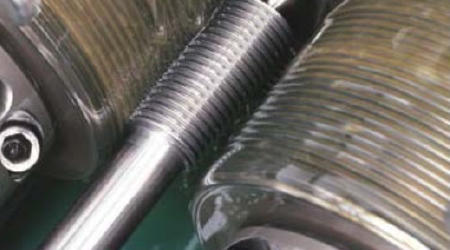

Rolling dies are used to copy threads onto "male" screws.

Utilizing the same advance technology we use for our world-renowned taps, OSG manufactures a variety of dies in accordance with their intended use with superb precision and tool life.

Product Lineup

Rolling Flat Dies (DP, T-DP)

Rolling Flat Dies (DP, T-DP)

Flat dies produce external threads by cold forming. OSG offers customization in accordance to the required material and machinery specifications.

Thread Rolling Cylindrical Dies (TR)

Thread Rolling Cylindrical Dies (TR)

Cylindrical dies are made for through-feed rolling and in-feed rolling. OSG offers customization in accordance to any desired specification.

Rotary Type Thread Rolling Dies (RCD・RSD)

Rotary Type Thread Rolling Dies (RCD・RSD)

Planetary dies are precision ground on both the rotary die as well as the segment die. These dies may be turned over for additional settings where thread length permits. OSG offers custom dies based on any desired specification.

Rack Type Rolling Dies (RF)

Rack Type Rolling Dies (RF)

Rack dies are designed to eliminate the machine adjustment often required in die set up. OSG can manufacture rack dies to custom prints.

Trimming Dies (TMD)

Trimming Dies (TMD)

Trim dies are designed to remove the flashing left over from the cold heading process on the head of bolts and fasteners. OSG can produce custom trim dies to any desired specification quickly and to the highest quality standard.

Round Dies (RD)

Round Dies (RD)

Cutting tool for machining male threads. Rolling tools are generally used to machine male threads, but round dies are used to cut screws for lathes.

For custom products, contact your nearest OSG sales representative for details.
