ADO-SUS

Carbide Drill for Stainless Steel and Titanium Alloy

LogoLogo
  • Carbide Drill for Stainless Steel and Titanium Alloy1
  • Carbide Drill for Stainless Steel and Titanium Alloy2
  • Carbide Drill for Stainless Steel and Titanium Alloy3
  • Carbide Drill for Stainless Steel and Titanium Alloy4
  • Carbide Drill for Stainless Steel and Titanium Alloy5
Carbide Drill for Stainless Steel and Titanium Alloy1 Carbide Drill for Stainless Steel and Titanium Alloy2 Carbide Drill for Stainless Steel and Titanium Alloy3 Carbide Drill for Stainless Steel and Titanium Alloy4 Carbide Drill for Stainless Steel and Titanium Alloy5
Work hardening, welding, elongation of cutting chips and poor thermal conductivity are common problems in the machining of stainless steels and titanium alloys. The ADO-SUS is a carbide drill series that employs a unique coolant hole shape and tool geometry to enable efficient drilling in these difficult-to-machine materials.

Features

Carbide Drill for Stainless Steel and Titanium Alloy Features
1 Sharp cutting edge reduces work hardening.

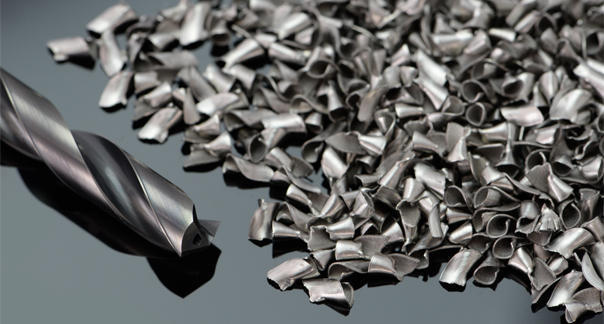

2 New flute geometry enables the creation of compact cutting chips.
3 Special margin shape reduces friction and heat generation.

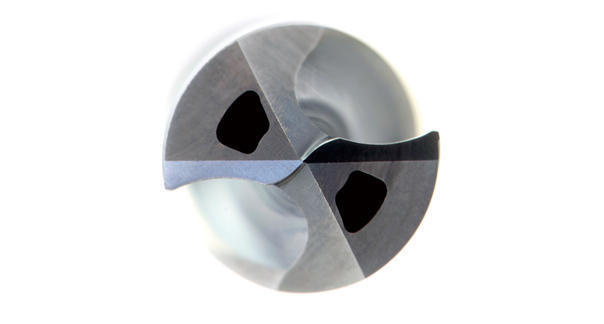

4 New coolant hole shape “MEGA COOLER” improves coolant flow, chip evacuation and cutting heat generation.
5 WXL coating provides high adhesion strength, which minimizes the possibility of chipping.

Applications

Low Carbon Steel・Medium Carbon Steel・High Carbon Steel・Alloy Steel・Stainless Steel・Cast Iron・Ductile Cast Iron・Copper Alloy・Aluminum Alloy Casting・Titanium Alloy・Magnesium Alloy

Lineup

ADO-SUS-3D φ2~φ20

ADO-SUS-5D φ2~φ20

ADO-SUS-8D φ2~φ12

Data

Machining Austenitic Stainless Steel

Machining Austenitic Stainless Steel
Machining Austenitic Stainless Steel

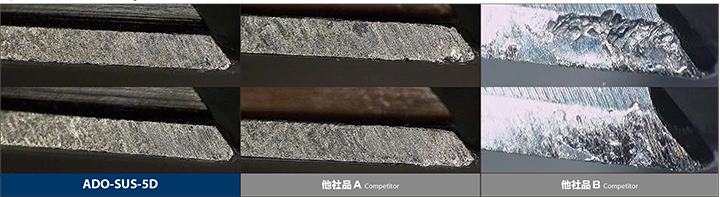

ADO-SUS has the least margin wear by restraining heat generation!

Machining Austenitic Stainless Steel

After drilling 1,500 holes
