In addition to the newly added oil hole configuration compatible for stainless steel, the ADF-2D lineup has been further expanded to accommodate small diameter drilling in 60 sizes! Machining a flat hole traditionally required the use of an end mill and a drill. The ADF enables one-step drilling to simplify machining time and tool management. Suitable for a wide variety of drilling applications including inclined surfaces, curved surfaces, counterboring, eccentric holes, thin plates, etc.

One drill does it all – suitable for a wide variety of applications.

One drill does it all – suitable for a wide variety of applications.

Features

Carbide Flat Drill Features
1 One drill does it all – suitable for a wide variety of applications.
2 EgiAs coating for exceptional wear resistance and toughness.
3 Wide chip room for smooth chip evacuation.
4 Unique end cut geometry reduces cutting force to enable stable machining.
5 20°helical grooves with high rigidity.

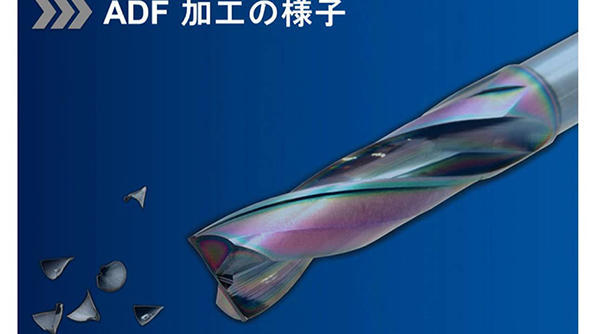

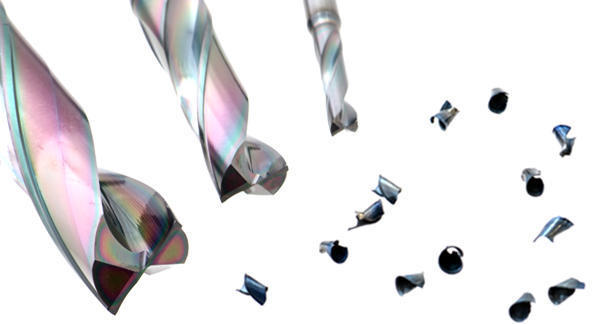

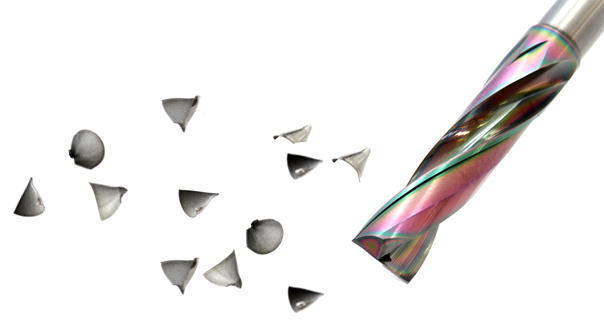

6 Sharp gash angle produces chips with fine curl.

Applications

ADF-2D : Low Carbon Steel・Mild Steel・Carbon Steel ・Alloy Steel・Plastic Mold Steel ・Stainless Steel(Dc<φ2)・Special Alloy Steel・Hardened Steel・Prehardened Steel・Cast Iron・Ductile Cast Iron・Aluminum・Aluminum Alloy Casting

ADFLS-2D : Low Carbon Steel・Mild Steel・Carbon Steel ・Alloy Steel・Plastic Mold Steel ・Special Alloy Steel・Hardened Steel・Prehardened Steel・Cast Iron・Ductile Cast Iron・Aluminum・Aluminum Alloy Casting

ADFO-3D : Low Carbon Steel・Mild Steel・Carbon Steel ・Alloy Steel・Plastic Mold Steel・Stainless Steel・Special Alloy Steel・Hardened Steel・Prehardened Steel・Cast Iron・Ductile Cast Iron・Aluminum・Aluminum Alloy Casting

Lineup

Carbide Flat Drill (ADF-2D) φ0.2~φ20

    ADF-2D expanded with small diameter φ0.2-1.95mm in 60 sizes

Carbide Flat Drill Long Shank type (ADFLS-2D) φ3~φ20

Carbide Flat Drill with Oil Hole (ADFO-3D) φ3~φ20

View Product Video

Data

Superior performance even in stainless stee

Superior performance even in stainless stee 1
Superior performance even in stainless stee 2
