VU-TBR

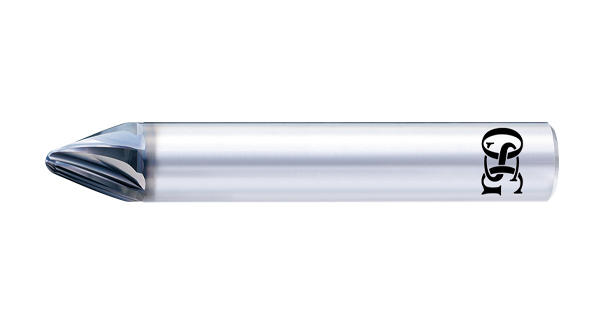

Taper Barrel Type End Mill for Finishing

  • Taper Barrel Type End Mill for Finishing1
  • Taper Barrel Type End Mill for Finishing2
  • Taper Barrel Type End Mill for Finishing3
Taper Barrel Type End Mill for Finishing1 Taper Barrel Type End Mill for Finishing2 Taper Barrel Type End Mill for Finishing3
With a large radius configuration, the VU-R series variant shape finishing tools are designed for high machining efficiency and superior machined surface quality. The tapered barrel type end mill VU-TBR is engineered with a large peripheral edge R and multi-flute specification to allow higher processing efficiency.

VU-R Series Variant Shape Tool for Finishing Website with CAD data for download

CAD data (DXF / STEP) conforming to ISO13399 are available for download.

Website for CAD data download

Features

Taper Barrel Type End Mill for Finishing Features
  • Multi-flute specification for higher processing efficiency
  • Highly efficient finishing (with the same cusp height: example 0.003 mm)

  • Superior machined surface quality (with the same pitch: example 1.5 mm)

Applications

Carbon Steel・Alloy Steel・Tool Steel・Prehardened Steel・Hardened Steel・Stainless Steel・Cast Iron・Ductile Cast Iron・Aluminum Alloy・Titanium Alloy・Heat Resistant Alloy

Lineup

Taper Barrel Type End Mill (VU-TBR)

  • R0.5 × R150~R3 × R500
Website with CAD data for download

Others

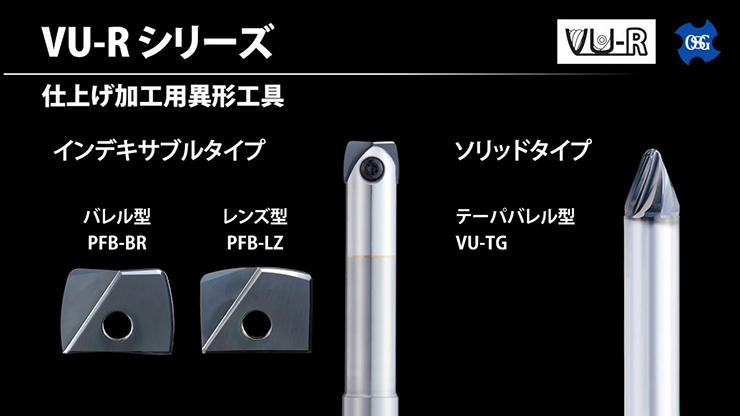

    The VU-R series variant shape tool for finishing is also available in indexable style (barrel type and lens type).
Click Here for Details

Data

High efficiency 5-axis machining on vertical slope

High efficiency 5-axis machining on vertical slope
High efficiency 5-axis machining on vertical slope
High efficiency 5-axis machining on vertical slope

By increasing the pitch with a large radius and increasing the feed rate, approximately 10 times the efficiency is achieved.
