AE-LNBD-N

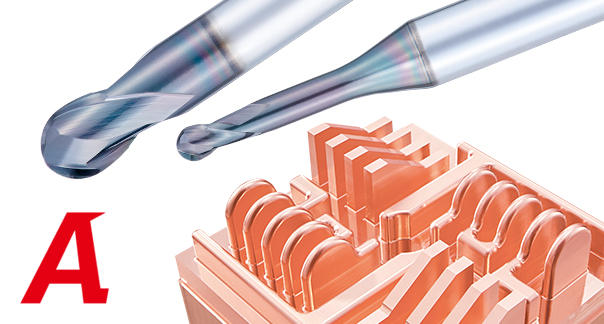

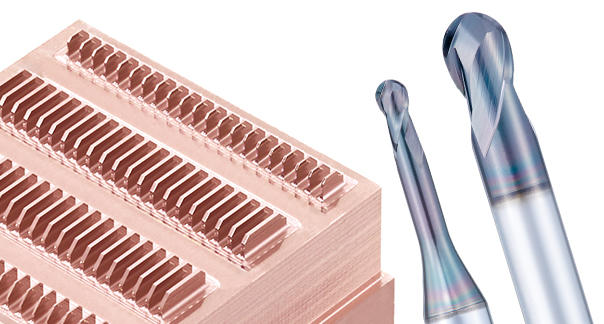

DLC Coated Carbide End Mill for Copper Electrodes

LogoLogo
  • DLC Coated Carbide End Mill for Copper Electrodes1
  • DLC Coated Carbide End Mill for Copper Electrodes2
  • DLC Coated Carbide End Mill for Copper Electrodes3
  • DLC Coated Carbide End Mill for Copper Electrodes4
  • DLC Coated Carbide End Mill for Copper Electrodes5
DLC Coated Carbide End Mill for Copper Electrodes1 DLC Coated Carbide End Mill for Copper Electrodes2 DLC Coated Carbide End Mill for Copper Electrodes3 DLC Coated Carbide End Mill for Copper Electrodes4 DLC Coated Carbide End Mill for Copper Electrodes5
The AE-LNBD-N DLC coated carbide end mill enables the milling of copper electrodes with high precision and excellent surface finish without burrs due to its optimal sharp cutting edge shape and excellent ball R accuracy. The DLC-IGUSS coating, which is extremely effective against non-ferrous metals such as copper alloys that require welding resistance and lubricity, is used to enable stable milling accuracy for a long period of time.

Features

DLC Coated Carbide End Mill for Copper Electrodes Features
1 DLC-IGUSS coating
2 Optimal cutting edge shape for milling copper alloy

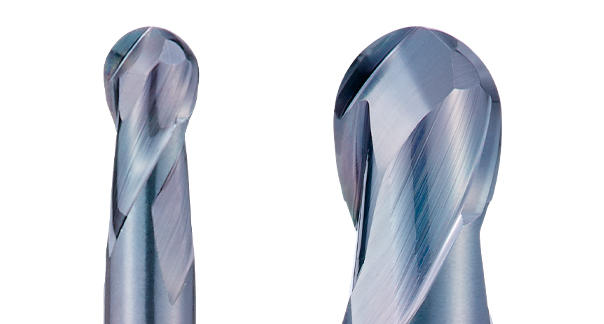

3 Superior ball R precision
4 Supports h4 tolerance (0/-0.004)
  • Teardrop-shaped outer periphery
Strong back taper geometry enables milling by point, which prevents chattering and chipping, resulting in improvement of surface accuracy.

Applications

Copper Alloy・Aluminum Alloy・Plastic

Lineup

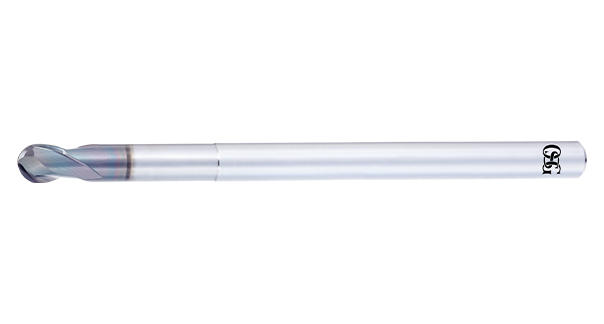

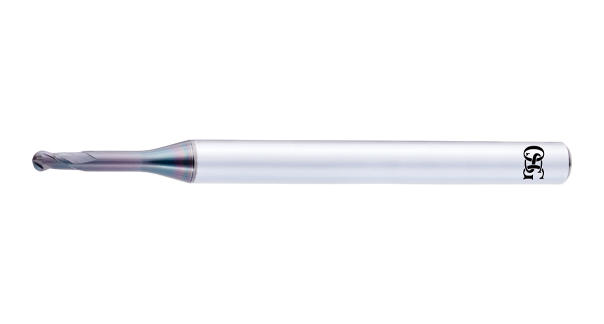

2-flute long neck type for high-precision finishing (AE-LNBD-N)

  • R0.05~R3

Data

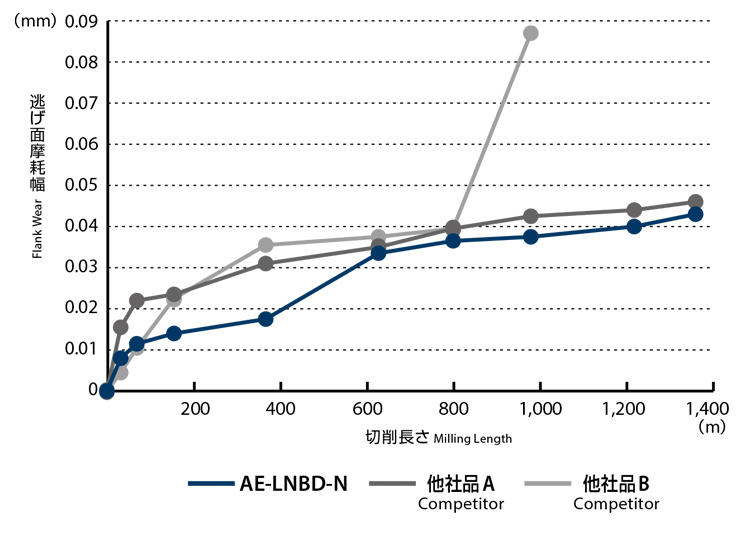

Exhibits superior endurance in copper tungsten

Exhibits superior endurance in copper tungsten
Exhibits superior endurance in copper tungsten
Exhibits superior endurance in copper tungsten

Media

Catalog

Movie

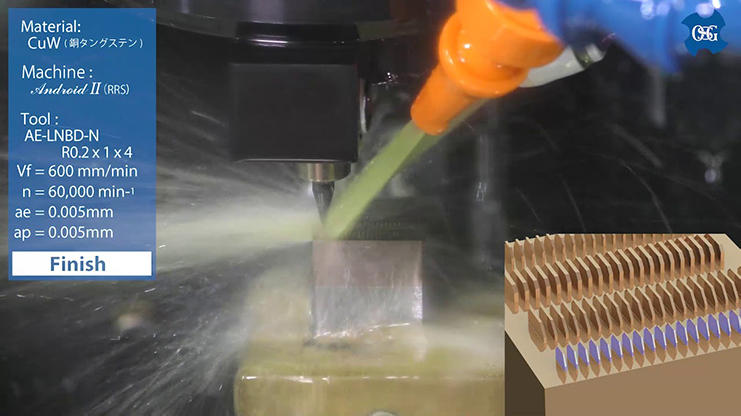

Watch it in action
