AT-2

Thread mill with end-cutting edge for high hardness steels

LogoLogo
  • Thread mill with end-cutting edge for high hardness steels1
  • Thread mill with end-cutting edge for high hardness steels2
  • Thread mill with end-cutting edge for high hardness steels3
  • Thread mill with end-cutting edge for high hardness steels4
  • Thread mill with end-cutting edge for high hardness steels5
Thread mill with end-cutting edge for high hardness steels1 Thread mill with end-cutting edge for high hardness steels2 Thread mill with end-cutting edge for high hardness steels3 Thread mill with end-cutting edge for high hardness steels4 Thread mill with end-cutting edge for high hardness steels5
The AT-2 thread mill with end-cutting edge for high hardness steels is ideal for highly difficult high hardness steel applications. The risk of sudden tool breakage can be minimized by breaking chips into small and manageable pieces and evacuating them smoothly. Since no pilot hole is required, process integration and the risk of breakage can be avoided.

Features

Thread mill with end-cutting edge for high hardness steels Features
  • Helical drilling + threading can be done simultaneously.

No pilot hole is required! Stable machining without chip trouble

No pilot hole is required! Stable machining without chip trouble.

  • Newly developed DUROREY coating enables superior heat resistance and high toughness optimized for high-hardness steel milling!
1Special cutting edge shape suppresses bending of the tool.
2Left-hand cut configuration enables climb milling to prolong tool life.
3Roughing teeth are added to distribute the load.
  • Use RPRG to reduce the workload
    RPRG is the reference value of tool radius offset. Conventionally, the tool radius value is entered during setup as a parameter of the NC system, which is corrected by checking the thread with a gauge. Now, the process of correction can be simplified by simply inputting the RPRG value as indicated on the tool shank.

Support

Three Support Tools for Your Thread Milling Needs
(1) Reduce Setup Time
(2) Reduce Machining Time
(3) Achieve Stable Tool Life



Lineup

2D Type

  • M3~M20
  • No.8~1/2U

2.5D Type

  • M3~M20
  • No.8~1/2U

Applications

    Low Carbon Steel・Medium Carbon Steel・High Carbon Steel・Alloy Steel・Hardened Steel・Stainless Steel・Tool Steel・Cast Steel・Cast Iron・Ductile Cast Iron・Copper・Brass・Brass Casting・Bronze・Aluminum Rolled・Aluminum Alloy Casting・Magnesium Alloy Casting・Zinc Alloy Casting・Titanium Alloy・Ni-based Alloy・Thermo Setting Plastic・Thermo Plastic

Data

Long and stable tool life with higher thread quality compared to cutting taps

Long and stable tool life with higher thread quality compared to cutting taps
Long and stable tool life with higher thread quality compared to cutting taps
Long and stable tool life with higher thread quality compared to cutting taps

Media

Catalog

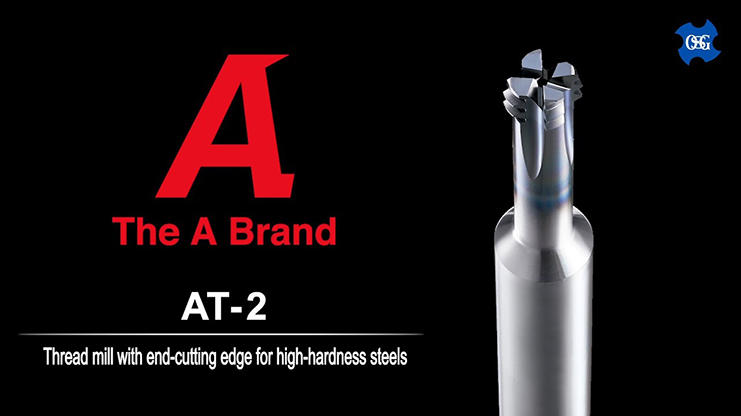

Movie
