Finishing Ball End Mill: Barrel Type and Lens Type

LogoLogo
  • Finishing Ball End Mill: Barrel Type and Lens Type1
  • Finishing Ball End Mill: Barrel Type and Lens Type2
  • Finishing Ball End Mill: Barrel Type and Lens Type3
  • Finishing Ball End Mill: Barrel Type and Lens Type4
  • Finishing Ball End Mill: Barrel Type and Lens Type5
Finishing Ball End Mill: Barrel Type and Lens Type1 Finishing Ball End Mill: Barrel Type and Lens Type2 Finishing Ball End Mill: Barrel Type and Lens Type3 Finishing Ball End Mill: Barrel Type and Lens Type4 Finishing Ball End Mill: Barrel Type and Lens Type5

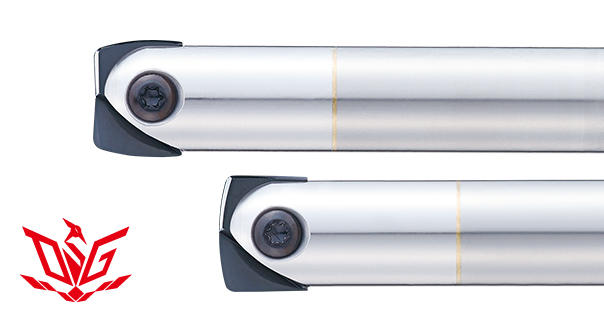

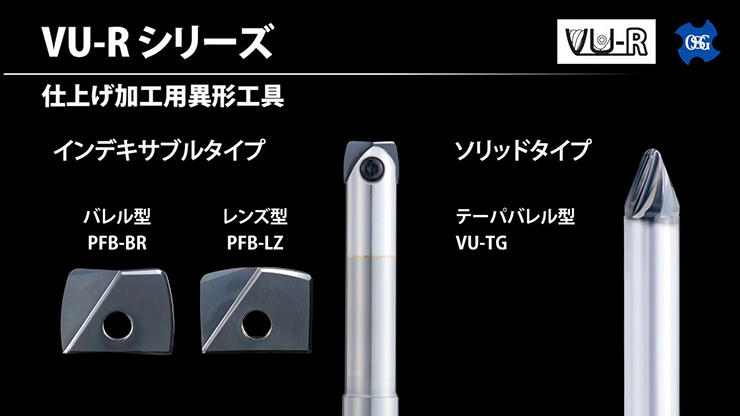

With a large radius configuration, the VU-R series variant shape finishing tools are designed for high machining efficiency and superior machined surface quality. The indexable barrel type and lens type inserts feature a unique geometry to enable smooth machined surface and high efficiency processing.

VU-R Series Variant Shape Tool for Finishing Website with CAD data for download

CAD data (DXF / STEP) conforming to ISO13399 are available for download.

Website for CAD data download

Features

Finishing Ball End Mill: Barrel Type and Lens Type Features
  • Capable to mill with a larger pitch

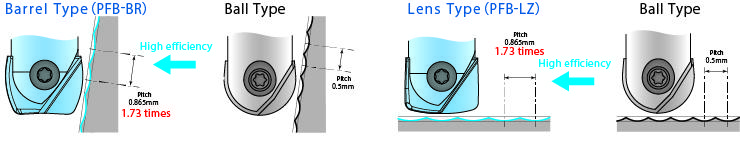

  • Highly efficient finishing (with the same cusp height: example 0.003 mm)

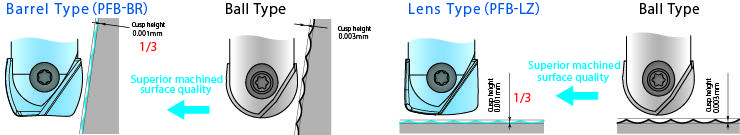

  • Superior machined surface quality (with the same pitch: example 0.5 mm)

Applications

Mild Steel・Carbon Steel・Carbon Steel・Alloy Steel・Die Steel・Stainless Steel・Cast Iron・Ductile Cast Iron・Superalloy(Wet)・Titanium Alloy(Wet)・Pre-hardened Steel・Die Cast Steel・Hardened Steel

Lineup

Barrel Type Insert (PFB-BR)

  • Multi-purpose Type (XP3225)  φ10 Peripheral edge R15~φ32 Peripheral edge R48
  • Reinforced Edge Type (XP3310)  φ10 Peripheral edge R15~φ32 Peripheral edge R48
Website for CAD data download

Lens Type Insert (PFB-LZ)

  • Multi-purpose Type (XP3225)  φ10 Bottom edge R15~φ32 Bottom edge R48
  • Reinforced Edge Type (XP3310)  φ10 Bottom edge R15~φ32 Bottom edge R48
Website for CAD data download

Others

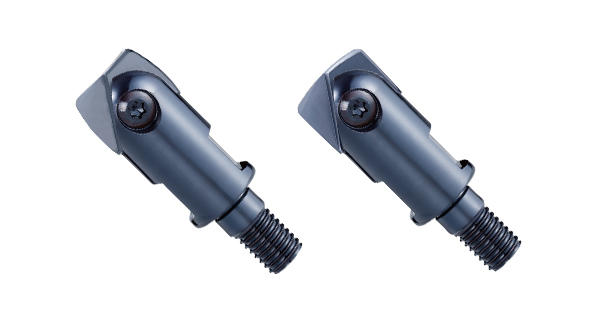

    The VU-R series variant shape tool for finishing is also available in solid style (taper barrel type VU-TBR).
Click Here for Details

Data

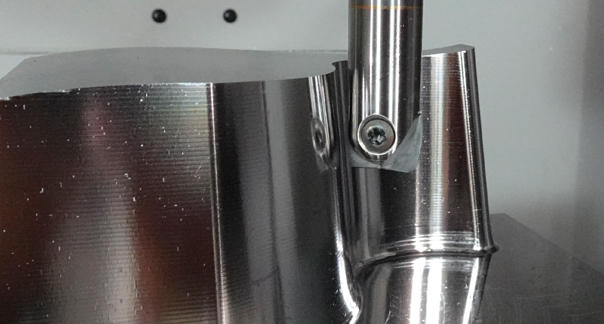

3-axis finishing of mold base vertical slope by barrel type tool (PFB-BR)

3-axis finishing of mold base vertical slope by barrel type tool (PFB-BR)
3-axis finishing of mold base vertical slope by barrel type tool (PFB-BR)
3-axis

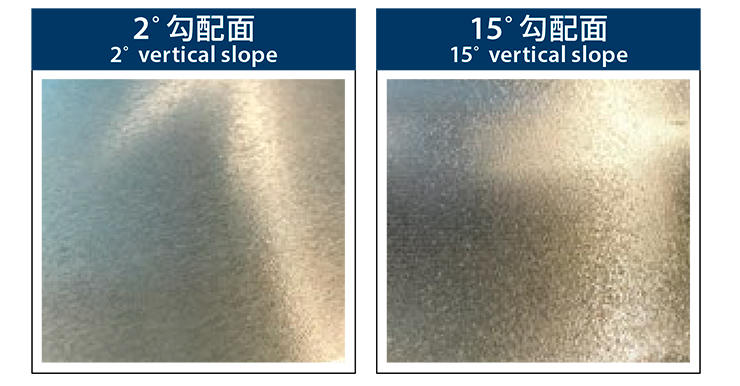

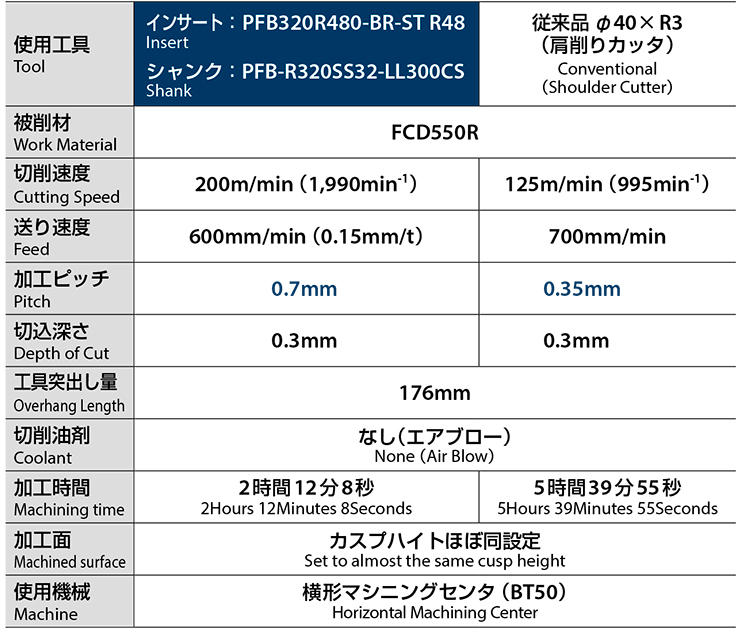

The pitch is set to twice that of conventional tool. The finished surfaces are extremely satisfactory for both vertical slopes, with the processing efficiency increased by about 30%.
