Thread Mills

Thread Mill

Superior thread milling products and supportive tools for achieving the perfect thread even under challenging cutting conditions.

Ideal for expensive workpieces where mistakes cannot be tolerated and holes with limited clearance before threading.

Thread mills are tools designed to cut threads by milling. Thread mills are used on numerically controlled machining centers (NC) that have simultaneous, triaxle control and helical interpolation functions. In comparison to general tapping, thread milling is more stable with less cutting condition limitations in terms of chip management and coolant lubricity.

Support

Reduce setup procedures, machining time, and achieve stable tool life with these complementary tools.

Product Lineup

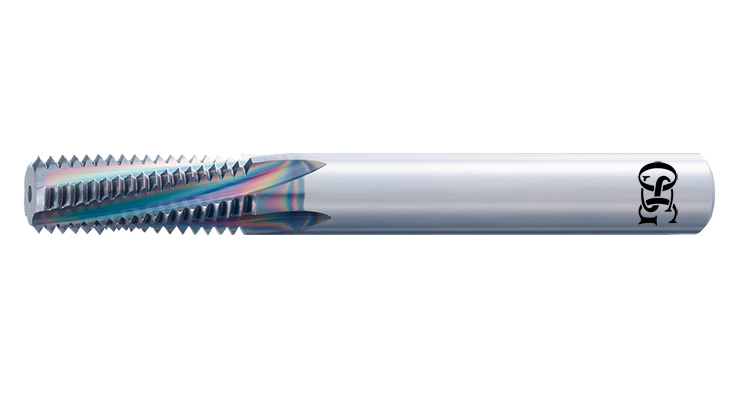

AT-1: One Pass Thread Mill

AT-1: One Pass Thread Mill

Revolutionary 1-pass thread mill for high quality threading. Evolution from conventional 2-pass cutting to 1-pass cutting by preventing bending, thus reducing cutting time.

AT-2: Thread mill with end-cutting edge for high hardness steels

AT-2: Thread mill with end-cutting edge for high hardness steels

The AT-2 thread mill with end-cutting edge for high hardness steels is ideal for highly difficult high hardness steel applications.

AT-2 R-SPEC: High-efficiency thread mill with end-cutting edge for non-ferrous metals

AT-2 R-SPEC: High-efficiency thread mill with end-cutting edge for non-ferrous metals

The high-efficiency thread mill AT-2 R-SPEC is engineered to dramatically reduce machining time in non-ferrous metal applications such as aluminum alloy by its continuous helical cutting ability, which combines drilling and threading into a single process.

Thread Mill for Non-ferrous Metals and Heat-Resistant Alloys

Thread Mill for Non-ferrous Metals and Heat-Resistant Alloys

WX-PNC: suppresses vibration with 30 ° helical flute geometry. Superior durability can be achieved with the utilization of OSG's toughest premium carbide substrate.

Thread Mill for Non-ferrous Metals and Heat-Resistant Alloys

Thread Mill for Non-ferrous Metals and Heat-Resistant Alloys

WX-PNC: suppresses vibration with 30 ° helical flute geometry. Superior durability can be achieved with the utilization of OSG's toughest premium carbide substrate.

Indexable Thread Mill

Indexable Thread Mill

A single tool body can accommodate inserts of different pitch sizes. Ideal for workpieces that require few processes. Minimal deflection even with long overhang length to enable high quality thread milling.
