PSFL

4-Corner Roughing End Mill

LogoLogo
  • 4-Corner Roughing End Mill1
  • 4-Corner Roughing End Mill2
  • 4-Corner Roughing End Mill3
  • 4-Corner Roughing End Mill4
  • 4-Corner Roughing End Mill5
4-Corner Roughing End Mill1 4-Corner Roughing End Mill2 4-Corner Roughing End Mill3 4-Corner Roughing End Mill4 4-Corner Roughing End Mill5
High productivity cutter with no chatter even in deep milling applications.

Features

4-Corner Roughing End Mill Features

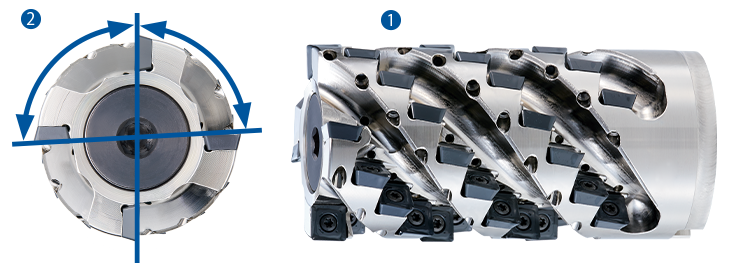

  • Special body design prevents vibration.
1 Unequal lead alignment.
2 Unequal spacing teeth.

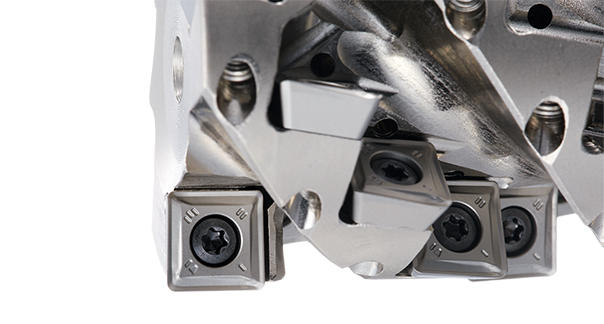

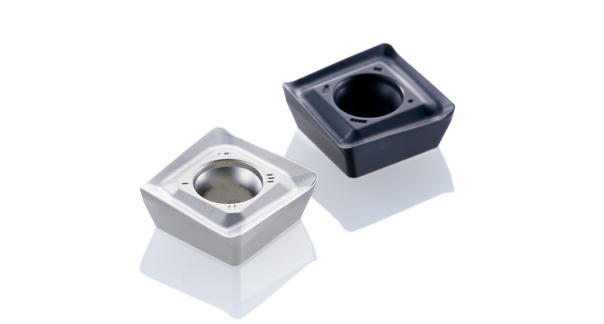

  • Economical high durability 4-corner insert.
  • Sharp cutting edge and large positive rake angle reduce cutting resistance.

Applications

Mild Steel・Carbon Steel・Carbon Steel・Alloy Steel・Die Steel・Stainless Steel (Dry)・Stainless Steel (Wet)・Cast Iron・Ductile Cast Iron・Aluminum Alloy・Superalloy (Wet)・Titanium Alloy (Wet)・Pre-hardened Steel・Steel for Die Casting

Lineup

Straight Shank Type (PSFL SS) φ32・φ40

Bore Type (PSFL BORE) φ50~φ100

Data

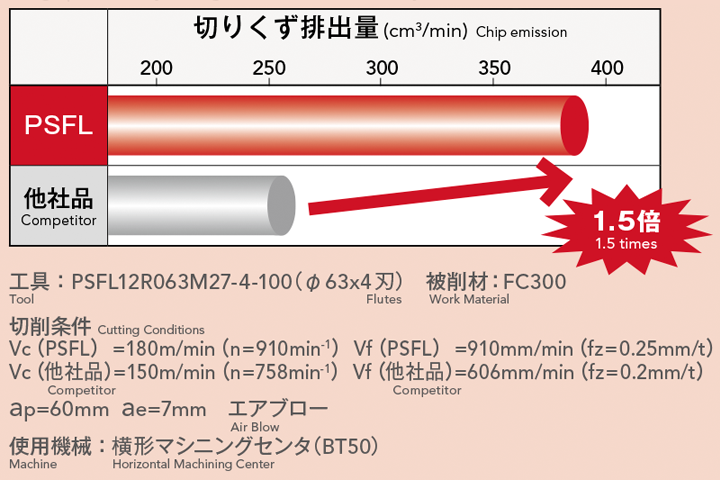

High productivity milling with 1.5 times efficiency

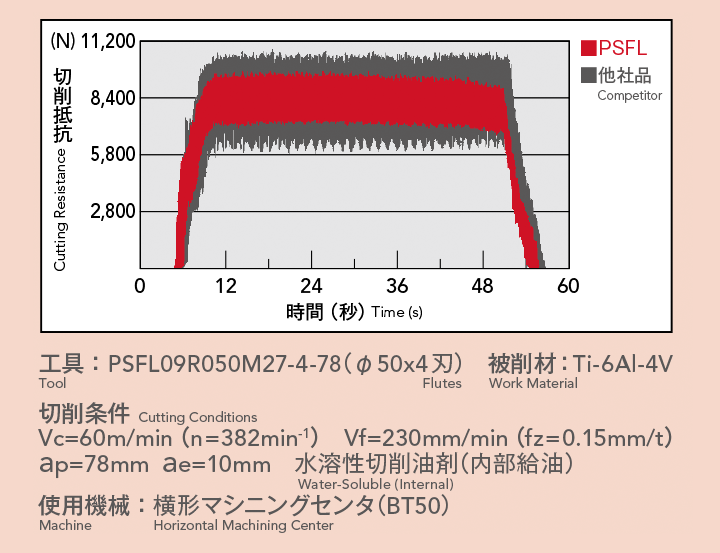

The anti-vibration feature of the special body design enables the suppression of chattering

The anti-vibration feature of the special body design enables the suppression of chattering

High productivity milling with 1.5 times efficiency

High productivity milling with 1.5 times efficiency
