AE-VML

Anti-Vibration long Carbide End Mill

LogoLogo
  • Anti-Vibration long Carbide End Mill1
  • Anti-Vibration long Carbide End Mill2
  • Anti-Vibration long Carbide End Mill3
  • Anti-Vibration long Carbide End Mill4
  • Anti-Vibration long Carbide End Mill5
Anti-Vibration long Carbide End Mill1 Anti-Vibration long Carbide End Mill2 Anti-Vibration long Carbide End Mill3 Anti-Vibration long Carbide End Mill4 Anti-Vibration long Carbide End Mill5

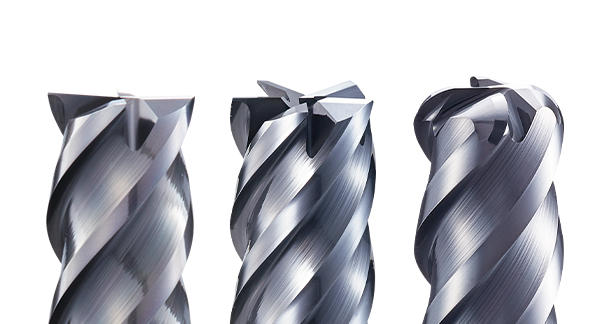

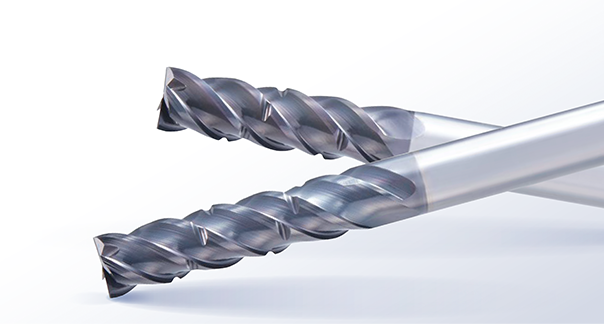

The AE-VM anti-vibration carbide end mill series is ideal for a wide range of materials ranging from carbon steel, alloy steel and stainless steel to titanium alloys and Ni-based alloys. The long type AE-VML enables high-speed side milling with its large thick core and web taper geometry with improved tool rigidity.

Features

Anti-Vibration long Carbide End Mill Features
1 "DUARISE coating" provides excellent lubricity, superior friction-resistance and high oxidation temperature
2 Sharp positive rake angle reduces cutting force
3 The web taper geometry, where the thickness of core changes from the cutting edge to the shank, greatly improves tool rigidity, thereby prevents the machining surface from tilting
4 High anti-vibration effect by the combination of variable lead, unequal spacing teeth and microrelief geometry
  • AE-VML chipbreaker (-N) configuration: creates small and compact chips to enable undisruptive machining operation.

Applications

Mild Steel・Carbon Steel・Alloy Steel・Tool Steel・Prehardened Steel・Hardened Steel・Stainless Steel・Cast Iron・Copper Alloy・Aluminum Alloy・Titanium Alloy・Heat Resistant Alloy

Lineup

Square Type

  • Square Type φ6×19~φ12×48
  • Chipbreaker Type φ6×19-N~φ12×48-N
View Product Video

Radius Type

  • φ6×19×R0.3~φ12×48×R3

Others

Data

Excellent surface finish

Excellent surface finish
Excellent surface finish
