AE-VMSS

Anti-Vibration Stub Carbide End Mill

LogoLogo
  • Anti-Vibration Stub Carbide End Mill1
  • Anti-Vibration Stub Carbide End Mill2
  • Anti-Vibration Stub Carbide End Mill3
  • Anti-Vibration Stub Carbide End Mill4
  • Anti-Vibration Stub Carbide End Mill5
Anti-Vibration Stub Carbide End Mill1 Anti-Vibration Stub Carbide End Mill2 Anti-Vibration Stub Carbide End Mill3 Anti-Vibration Stub Carbide End Mill4 Anti-Vibration Stub Carbide End Mill5
The AE-VM anti-vibration carbide end mill series is ideal for a wide range of materials ranging from carbon steel, alloy steel and stainless steel to titanium alloys and Ni-based alloys. The stub type AE-VMSS features a unique flute form that achieves both tool rigidity and trouble-free chip evacuation. Available from φ1 with a short flute length and 4-flute specification, higher milling efficiency can be achieved. In addition, a right angle type for milling straight corners has been added to the lineup to meet a wide variety of application needs.

Features

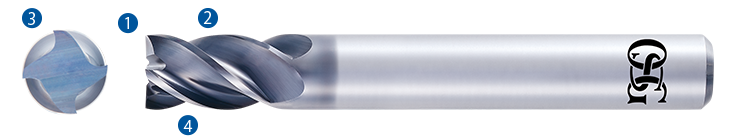

Anti-Vibration Stub Carbide End Mill Features
1 "DUARISE coating" provides excellent lubricity, superior friction-resistance and high oxidation temperature
2 High rigidity specification with 1.5 x D flute length
3 New flute form with good chip evacuation ability and a positive edge geometry for reducing cutting resistance
4 Variable-lead geometry suppresses vibration

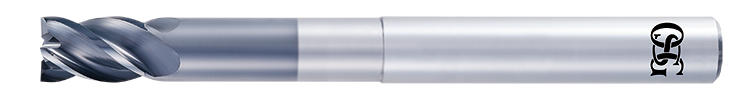

  • Right angle type: for milling straight corners with no uncut residue

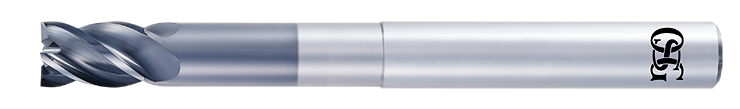

  • Long neck type: achieves good machining accuracy in deep side milling

Applications

Mild Steel・Carbon Steel・Alloy Steel・Tool Steel・Prehardened Steel・Hardened Steel・Stainless Steel・Cast Iron・Copper Alloy・Aluminum Alloy・Titanium Alloy・Heat Resistant Alloy

Lineup

Stub

  • Square Type φ1~φ12
  • Right Angle Type φ1~φ6 Available from September 9th, 2020
  • Long Neck Type φ6×18~φ12×60

Others

Data

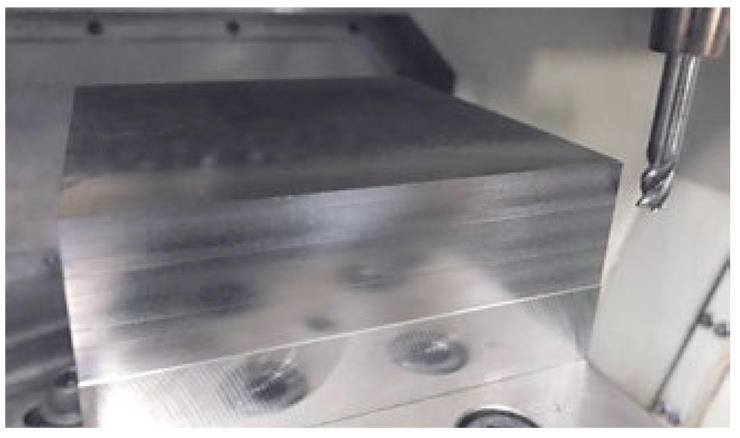

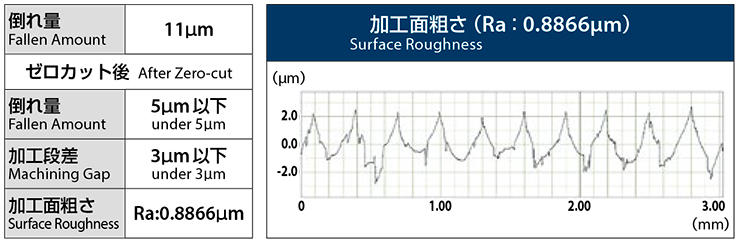

Great surface finish with no chattering

Great surface finish with no chattering
Great surface finish with no chattering
Great surface finish with no chattering
