NEWS

Information regarding the latest product releases in June.

On Sale from June 24

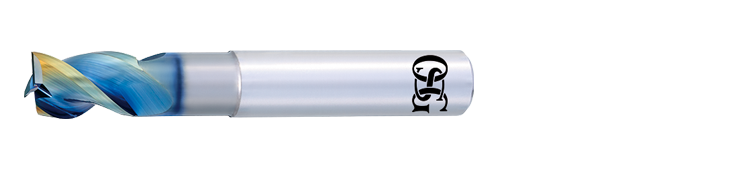

AE-TS-N・AE-TL-N: DLC Coated Carbide End Mill for Non-Ferrous Materials Standard Type

Standard specification suitable for non-ferrous material processing

・Short Type (AE-TS-N)　φ3×9 ～ φ12×36　7 sizes

・Long Type (AE-TL-N)　φ3×9 ～ φ12×60　14 sizes

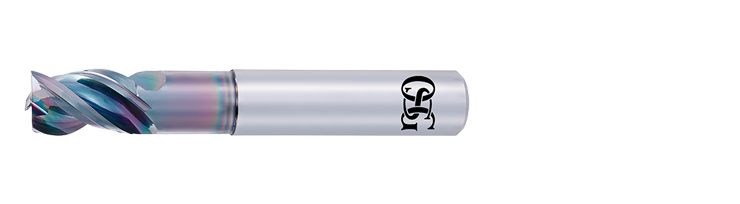

AE-VTS-N: DLC Coated Carbide End Mill for Non-Ferrous Materials High Performance Type

High performance type that supports a wide range of applications

・Short Type　φ3×9 ～ φ12×36　7 sizes

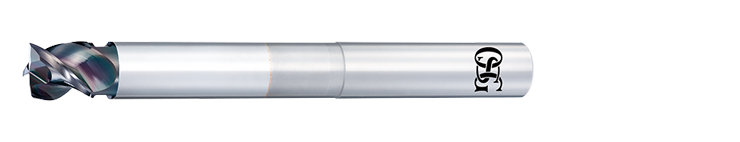

PXM(PXAL): DLC Coated Exchangeable Head End Mill for Non-Ferrous Materials

Suitable for large-diameter milling with high surface quality

・φ10 ～ φ25　24 sizes

On Sale from June 3

TPG-P: Taper Pipe Thread Plug Gauge for Minor Diameter

Inspection of minor diameter dimensions that cannot be inspected with pipe thread gauges

・PT1/16-28 ～ PT2-11　13 sizes

・R1/16-28 ～ R2-11　10 sizes

TIN-LG: TiN Coated Thread Limit Gauge

Long tool life of the thread gauge is achieved by the high hardness TiN coating applied to the go side of the gauge as wear tends to progress.

・Class 3B 　0.1380-32UNJC ～ 0.7500-16UNJF　39 sizes

TIN-HL-LG: TiN Coated Insert Thread Limit Plug Gauge

Long tool life of the thread gauge is achieved by the high hardness TiN coating applied to the go side of the gauge as wear tends to progress.

・Class 3B 　0.1380-32UNJC ～ 0.7500-16UNJF　26 sizes

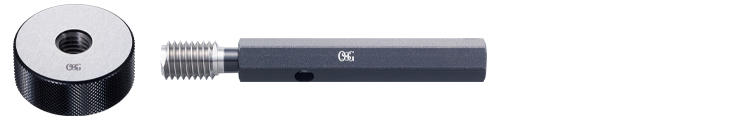

LCG: Wear check thread gauges

This gauge is used to check the wear of the GO thread limit gauge (GP, GR).

・Class 2 (Previous JIS) M2×0.4 ～ M12×1.75　11 sizes

・JIS (ISO) 6h　M1.4×0.3　2 sizes

・JIS (ISO) 6g　M1.6×0.35 ～ M36×1.5　94 sizes

・JIS (ISO) 6H　M2×0.4 ～ M12×1.75　11 sizesム

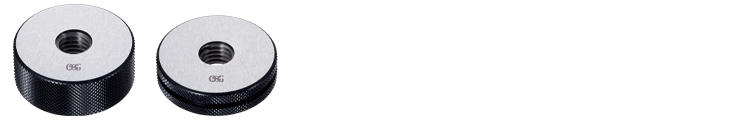

LG: Limit gauges for screw threads

New Sizes

・Class 3A　0.1380-32UNJC ～ 0.7500-16UNJF　39 sizes

・Stud Bolt（STUD）　M6×1 ～ M16×1.5　24 sizes
